MFG:SIEMENS Package Cooled:DIP
MFG: SIEMENS
Package Cooled: DIP
Description: The IC comprises four driver circuits capable of driving power transistors for high output currents. T...
The IC comprises four driver circuits capable of driving power transistors for high output currents. The output transistors are protected against short-circuit to ground and supply voltage. The input threshold can be adjusted between 1.5 V and 7 V. Overload or shortcircuit failure at an output will be indicated at pin SQ (signaling output).

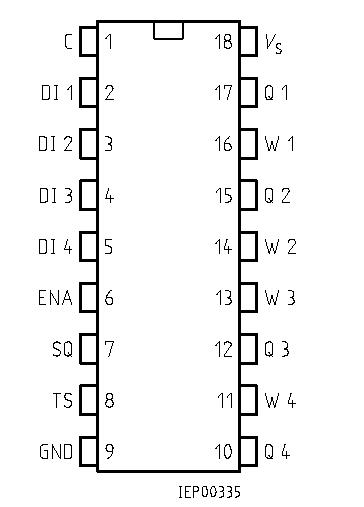

| Parameter | Symbol | Limit Values | Unit | Remarks | |
| min. | max. | ||||
| Supply voltage | VS | 0.3 | 35 | V | |
| VS | 0.3 | 45 | V | 100 ms duration, 1 s interval | |
| Input voltage at Dl and ENA | V DI, ENA | 0.3 | 35 | V | 1) |
| Voltage at TS and SQ | V TS, SQ | 0.3 | 45 | V | |
| Output voltage VQ and voltage at C |
VQ, VC | 0.3 | VS | V | |
| Voltage at W | VW | VS 5 | VS | V | 3) |
| Input current at DI and ENA | I DI, ENA | 3 | 1 | mA | 2) |
| I DI, ENA | 6 | 2 | mA | 2) 100 ms duration, 1 s interval | |
| I DI, ENA | 6 | 5 | mA | 2) 100 ms duration, 1 s interval | |
| Output current at SQ | ISQ | 8 | mA | ||
| Power dissipation of all input diodes |
Ptot | 50 | mW | ||
| Storage temperature Thermal resistance |
Tstg | 65 | 125 | °C | |
| system - air | R th SA | 65 | K/W | ||
| system - case | R th SC | 45 | K/W | ||
FZL4145D
PDF/DataSheet Download
