G1214

Mounting Hardware RG 875-18-12 1.063 DIA BLACK

product image

G1214 Picture
See larger image
SeekIC No. : 002535933 Detail

G1214: Mounting Hardware RG 875-18-12 1.063 DIA BLACK

G1214 Data Sheet

floor Price/Ceiling Price

US $ .11~.27 / Piece | Get Latest Price
Part Number:
G1214
Mfg:
Heyco
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~100
  • 100~500
  • 500~1000
  • Unit Price
  • $.27
  • $.19
  • $.15
  • $.11
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Rubber Grommet Material : Rubber
Outside Diameter : 1.063 in Length : 0.625 in

Description

Plating :
Thread Size :
Material : Rubber
Length : 0.625 in
Type : Rubber Grommet
Outside Diameter : 1.063 in


Features:

+3V to +5.5V Single-Supply Operation
Input / Output Rail-to-Rail
Low input current
High output driving capacity
Low Quiescent Current: 500µA @ 5V
High Slew rate 6.5V/µs
High Gain-Bandwidth Product 6.5MHz
High Open Loop Gain 95dB
High PSRR 70dB


Application

Headphone Driver
Portable Equipment
Battery-Powered Equipment
Multimedia Audio
ASIC Input or Output Amplifier
Sensor Amplifier
Low Power/Low Voltage Applications

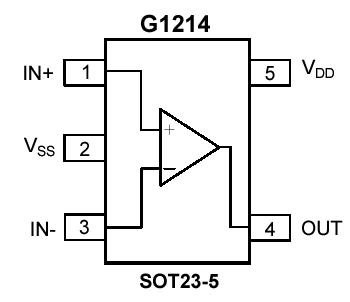

Pinout

Connection Diagram


Specifications

Supply Voltage (VDD to VSS)..........6.5V
All Other Pins.......(Vss-0.3V) to (VDD+0.3V)
Continuous Power Dissipation (TA=25°C)
SOT23-5.....................520mW
JA......................240°C/Watt
Junction Temperature..............150°C
Operating Temperature Range.......0C to 85°C
Storage Temperature Range......-65°C to 160°C
Lead Temperature (soldering, 10sec)...... 300°C


Description

G1214 is a input/output rail-to-rail Operational Amplifier. It can be operated from +3V to +5.5V single supply or from ±1.5V to ±2.75 dual supply. G1214 can drive 66mA into resistor loads to within 10% power rail. AC performance is very excellent with 6.5MHz bandwidth, 6.5V/µs Slew Rate, 95dB open loop gain, 60 degree phase margin and low distortion.

Supply current of G1214 is only 500µA per Amplifier. It is very suitable for low current consumption applications to control high current loads. Applications include audio amplification for computers, sound ports, sound cards and set-top boxes.

G1214 is housed in a 5-pins small SOT23-5 package.
