Product Details

Description

Features:

Class AB amplifier
High performance
High signal-to-noise ratio
Low distortion
Low power consumption
Large output voltage swing
Excellent power supply ripple rejection
3.0V to 7.0V supply voltage range
Surface-Mount package-SOP 8

Application

CD-ROM
DVD-ROM
CD-R/W
MP3
Portable Stereo
Earphone for cellular phone

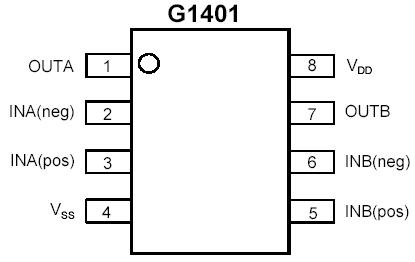

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX	unit
V_DD	Supply voltage		0	7.0	V
T_stg	Storage temperature		-65	+150
T_amb	Operating ambient temperature		0	+70
ESD	ESD voltage	HBM	-	2	kV

Description

The G1401 is a stereo audio power amplifier housed in a 8-pin SOP package capable of delivering 135mW of continuous power per channel into 16 loads. Amplifier gain is externally configured by means of two resistors per input channel.

The G1401 is a dual channel, low voltage, low power, performance OP amps that can be designed into a wide range of headphone driving applications, at an economical price.
