MFG:NKK Switches of America Inc  Category:Switches

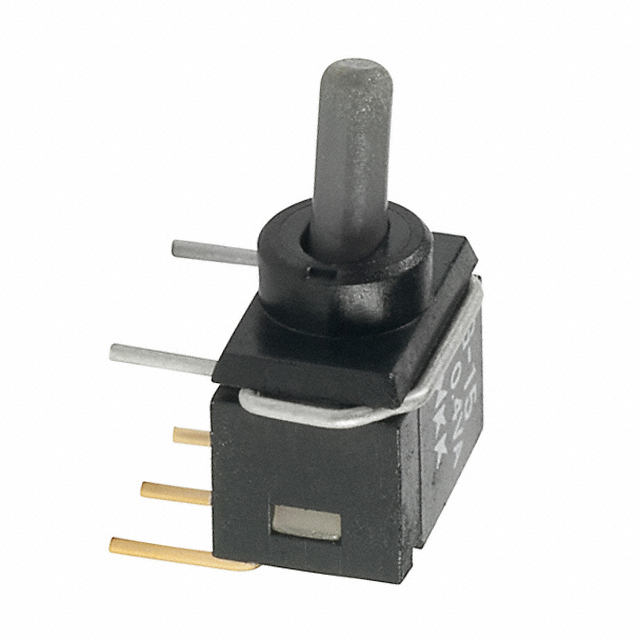

G15AH Product Image

G15 Series Datasheet download

Five Points

Part Number: G15AH

Category: Switches

MFG: NKK Switches of America Inc





Descriptions: SW TOGGLE SPDT MOM RT ANGLE PC

Urgent Purchase

G15AH General Description

SW TOGGLE SPDT MOM RT ANGLE PC

G15AH Parameters

Technical/Catalog InformationG15AH
VendorNKK Switches of America Inc
CategorySwitches
CircuitSPDT
Switch FunctionOn-Mom
Mounting TypeThrough Hole
Actuator Length3.80mm
Actuator TypeStandard Round
Bushing ThreadUnthreaded
Contact Rating @ Voltage0.4VA @ 28VAC/DC
IlluminationNon-Illuminated
Termination StylePC Pin
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names G15AH
G15AH

G15AH datasheet

G152B
PDF/DataSheet Download

Find G15AH Suppliers
