Purchase G25AP, In-stock G25AP From SeekIC.

MFG:NKK Switches of America Inc  Category:Switches

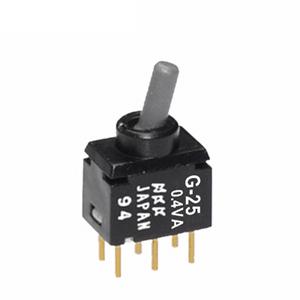

G25AP Product Image

G25 Series Datasheet download

Five Points

Part Number: G25AP

Category: Switches

MFG: NKK Switches of America Inc





Descriptions: SW TOGGLE MINI DPDT .15" PC

Price Break

1

Unit Price

7.75000

Extended Price

7.75

(All prices are in USD) Prices for reference only
Urgent Purchase

G25AP General Description

SW TOGGLE MINI DPDT .15" PC

G25AP Parameters

Technical/Catalog InformationG25AP
VendorNKK Switches of America Inc
CategorySwitches
CircuitDPDT
Switch FunctionOn-Mom
Mounting TypeThrough Hole
Actuator Length3.800mm
Actuator TypeStandard Round
Bushing ThreadUnthreaded
Contact Rating @ Voltage0.4VA @ 28VAC/DC
IlluminationNon-Illuminated
Termination StylePC Pin
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names G25AP
