Part Number: G5131
Description: The G5130/G5131 boost converter is designed for use of main power source on portable equipments. It consist ...
- Table of contents:
G5131
-
Suppliers
DataSheet
General Description
G5131 General Description
The G5130/G5131 boost converter is designed for use of main power source on portable equipments.
It consist of an oscillator, PSM control logic circuit, an embedded power MOS (LX switch), accurate voltage reference, error amplifier, feedback resistors, and LX protection circuit.
Only 3 external components (includes 1 inductor, 1 diode and 1 capacitor) are needed to construct the power application.
For larger output power application, G5131 can be used to drive an external NPN device for more input current.
G5131 Maximum Ratings
LX to GND.........................-0.3V to +7V
CE to GND.........................-0.3V to +7V
VOUT to GND........................-0.3V to +7V
Operating Temperature Range (Note 1)..... -40°C to + 8 °C
Junction Temperature .....................+125 °C
Storage Temperature............... -65°C to +150°C
Reflow Temperature (soldering, 10 sec)..........+260°C
CE to GND.........................-0.3V to +7V
VOUT to GND........................-0.3V to +7V
Operating Temperature Range (Note 1)..... -40°C to + 8 °C
Junction Temperature .....................+125 °C
Storage Temperature............... -65°C to +150°C
Reflow Temperature (soldering, 10 sec)..........+260°C
G5131 Features
1~4 Cell Alkaline Battery Operating Range
Output Voltage Range: 2.5V~5.0V in 0.1V In-crements
Minimum External Component (L, D, C)
100KHz Max. Oscillation Frequency
75% Duty Ratio
Up to 80% Efficiency
±2% High Output Voltage Accuracy
< 100ppm/°C Temperature Coefficient
SOT-89 and SOT-23-5 Small Packages
G5131 Typical Application
Power Source for Portable Equipments
Handheld Computers, Palmtops
Digital Still Cameras, Camcorders
Cellular Phones, Pagers
Portable Multimedia Players
Handheld Computers, Palmtops
Digital Still Cameras, Camcorders
Cellular Phones, Pagers
Portable Multimedia Players

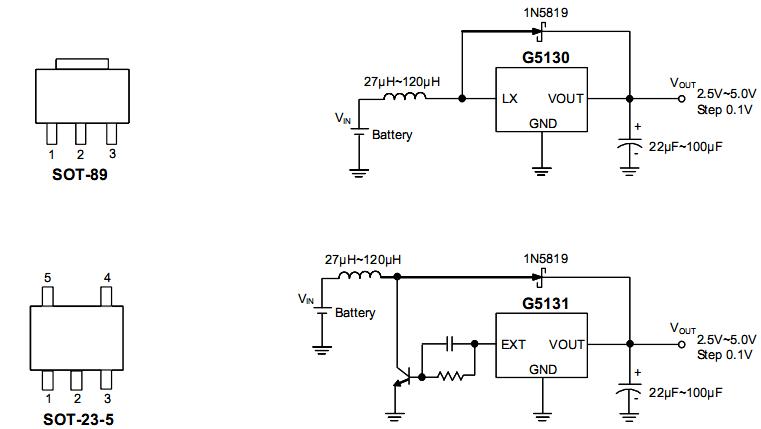

G5131 Connection Diagram
G5131-25T11U
