General Description
G526 General Description
The G526 is a dual integrated high-side power switch with independent enable and flag functions, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications.
The G526 satisfies the following USB requirements: the switch's low on-resistance meets USB voltage drop requirements; fault current is limited to typically 750mA, well below the UL 25VA safety requirement; and flag outputs are available to indicate fault condi-tions to the local USB controller. Soft start eliminates the momentary voltage drop on the upstream port that may occur when the switch is enabled in bus-powered applications.
Additional features include thermal shutdown to pre-vent catastrophic switch failure from high-current loads, under-voltage lockout (UVLO) ensuring that the device remains off unless there is a valid input voltage pre-sent, and an enable input that is compatible with both 3.3V and 5V logic.
The G526 is available in active-high and active-low enable versions in 8-pin SOIC packages.
G526 Maximum Ratings
Supply Voltage (VIN)....................+6.0V
Fault Flag Voltage (VFLG).................+6.0V
Fault flag current (IFLG)..................50mA
Output Voltage (VOUT).....................+6.0V
Output Current (IOUT)..........Internally Limited
Control Input (VEN).................-0.3V to 6V
Storage Temperature (TS)......-65°C to +150°C
Lead Temperature (Soldering 5 sec.)..........260°C
ESD protection...........................2KV
Fault Flag Voltage (VFLG).................+6.0V
Fault flag current (IFLG)..................50mA
Output Voltage (VOUT).....................+6.0V
Output Current (IOUT)..........Internally Limited
Control Input (VEN).................-0.3V to 6V
Storage Temperature (TS)......-65°C to +150°C
Lead Temperature (Soldering 5 sec.)..........260°C
ESD protection...........................2KV
G526 Features
Compliant to USB specifications
Low MOSFET on resistance at 5.0V 140m max.per channel
500mA minimum continuous load current per channel
3.0V to 5.5V input
110A typical on-state supply current
1A typical off-state supply current
Output can be forced higher than input (off-state)
1.25A maximum current limit
Thermal shutdown
2.4V typical undervoltage lockout (UVLO)
Open-drain fault flag pins
1ms turn-on (soft-start) and fast turnoff
Available with active-high or active-low enable
G526 Typical Application
USB host and self-powered hubs
Bus-powered hubs
Hot plug-in power supplies
Battery-charger circuits

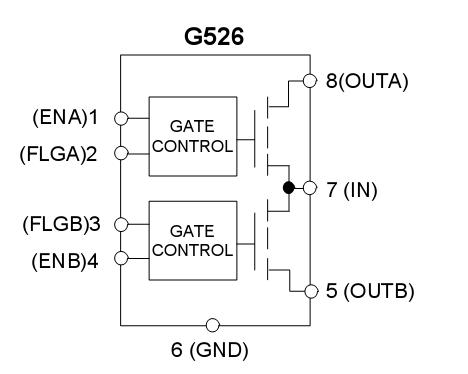

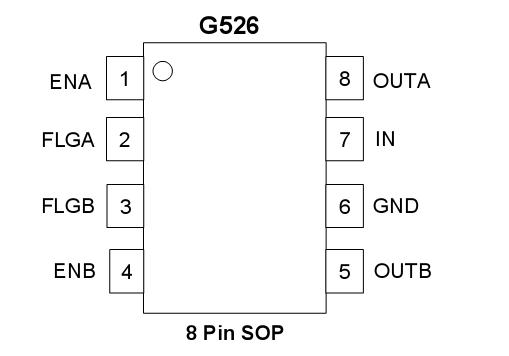

G526 Connection Diagram
G526
