Part Number: G5800
Description: The G5800 is a power management system chip opti-mized for Mobile phone handsets. It contains seven LD...
- Table of contents:
G5800
-
Suppliers
DataSheet
General Description
G5800 General Description
The G5800 is a power management system chip opti-mized for Mobile phone handsets. It contains seven LDOs, one to power each of the critical Mobile phone sub-blocks. Sophisticated controls are available for power-up during battery charging, keypad interface, and RTC alarm. The G5800 is optimized for maximum battery life, featuring a ground current of only 108A and 187A when the phone is in standby and opera-tion respectively.
The G5800 battery charger can be used with lithium ion (Li+) and nickel metal hydride (NiMH) batteries.
The G5800 contains three open-drain output switches for LED, alerter and vibrator control. The SIM interface provides the level shift between SIM card and micro-processor.
The G5800 is available in 48-pin QFN package. The operating temperature range is from -25°C to +85°C.
G5800 Features
Handles all Mobile Phone Baseband Power Management
2.8V to 5.5V Input Range
Charger Input up to 15V
Seven LDOs Optimized for Specific Mobile Phone Subsystems
High Operation Efficiency and Low Stand-by Current
Li-Ion and NiMH Battery Charge function
SIM Card Interface
Three Open-Drain Output Switches to Control the LED, Alerter and Vibrator
Thermal Overload Protection
Under Voltage Lock-out Protection
Over Voltage Protection
Power-on Reset and Start-up Timer
48-Pin QFN Package
G5800 Typical Application
GSM/GPRS/PCS Mobile Handsets
CDMA/CDMA2000/TDMA Mobile Handsets
Smart Phone
Basic Phone and High-end Phone

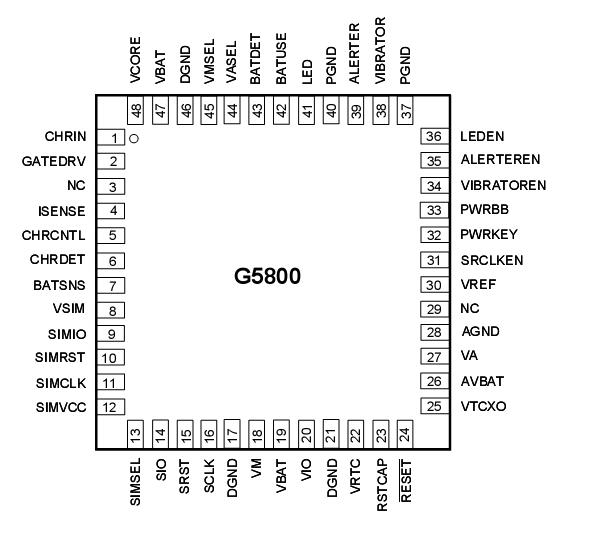

G5800 Connection Diagram
