SeekIC No. : 003831140 Detail

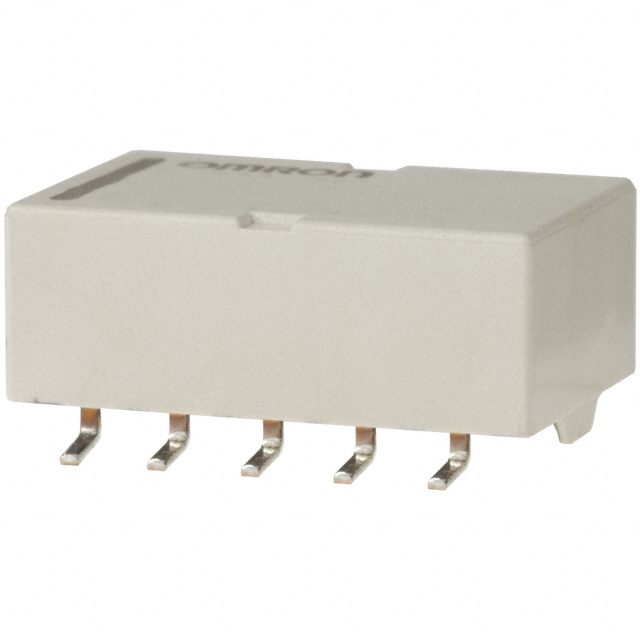

G6H-2-F-DC12: RELAY TELECOM DPDT 1A 12V

G6H-2-F-DC12 Data Sheet

Get Latest Price

Part Number:: G6H-2-F-DC12
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

G6H-2 evaluate
Features: ` Compact size and low 5 mm (0.20 in) profile` Low thermoelectromotive force`Low magneti...
G6H-2 DC18 evaluate
Low Signal Relays - PCB LOW SIGNAL RELAY
G6H-2 DC3 evaluate
RELAY TELECOM DPDT 1A 3V

Product Details

Quick Details

Series:	G6H	Manufacturer:	Omron Electronics Inc-EMC Div
Processor Series :	HCS12X	Relay Type:	Telecom
Coil Type:	Non Latching	Coil Current:	11.7mA
Coil Voltage:	12VDC	Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	1A	Switching Voltage:	125VAC, 110VDC - Max
Turn On Voltage (Max):	9 VDC	Turn Off Voltage (Min):	1.2 VDC
Features:	-	Mounting Type:	Surface Mount
Termination Style:	Gull Wing

Description

Relay Type: Telecom
Coil Type: Non Latching
Contact Form: DPDT (2 Form C)
Mounting Type: Surface Mount
Termination Style: Gull Wing
Coil Current: 11.7mA
Coil Voltage: 12VDC
Turn On Voltage (Max): 9 VDC
Turn Off Voltage (Min): 1.2 VDC
Features: -
Contact Rating (Current): 1A
Packaging: Tube
Switching Voltage: 125VAC, 110VDC - Max
Manufacturer: Omron Electronics Inc-EMC Div
Series: G6H

Parameters:

Technical/Catalog Information	G6H-2-F-DC12
Vendor	Omron Electronics Inc-ECB Div
Category	Relays
Relay Type	Telecom
Mounting Type	Surface Mount
Termination Style	Gull Wing
Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	1A @ 30VDC
Coil Voltage	12VDC
Control Off Voltage (Min)	1.25 VDC
Control On Voltage (Max)	9 VDC
Coil Current	11.7mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	G6H 2 F DC12 G6H2FDC12 Z828 ND Z828ND Z828
