General Description
G760A General Description
G760 is a single chip solution for fan speed control, packaged in a space saving SO-8 package. It con-nects directly to the fan and performs closed-loop control of the fan speed. The only external compo-nent required is a 10µF capacitor. t determined the current fan speed based on the fan rotation pulses and an externally supplied clock. It uses pulse width modulation (PWM) method and an on-chip MOSFET to control the fan speed to ±2% of the programmed speed. he desired fan speed is pro-grammed via the SMBus. The actual fan speed and fan status can be read via the SMBus. Short-circuit protection is implemented to prevent damages to the fan and this IC itself. An On/Off control pin is also provided.
G760A Maximum Ratings
| PARAMETER | SYMBOL | MAXIMUM | UNITS |
| Supply Voltage | VCC | -0.3 to +7 | V |
| Operating Temperature Range | TA | 0 to +70 | °C |
| Junction Temperature Range | TJ | 0 to +125 | °C |
| Storage Temperature Range | TSTG | -65 to +150 | °C |
| Lead Temperature (solding) 10 seconds | TL | 300 | °C |
G760A Features
-Constant Fan Speed Control
-PWM control for stable operation
-Build-in MOSFET switch
-SMBus interface
-Internal short-circuit protection
-On/Off control provided
-PWM control for stable operation
-Build-in MOSFET switch
-SMBus interface
-Internal short-circuit protection
-On/Off control provided
G760A Typical Application
-Notebook PC
-Industrial PC
-LAN Switch
-Servers
-Telecom equipment
-Industrial Control
-Industrial PC
-LAN Switch
-Servers
-Telecom equipment
-Industrial Control

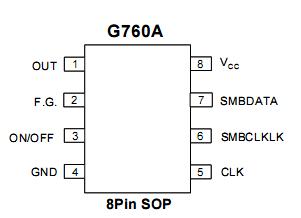

G760A Connection Diagram
G760A
