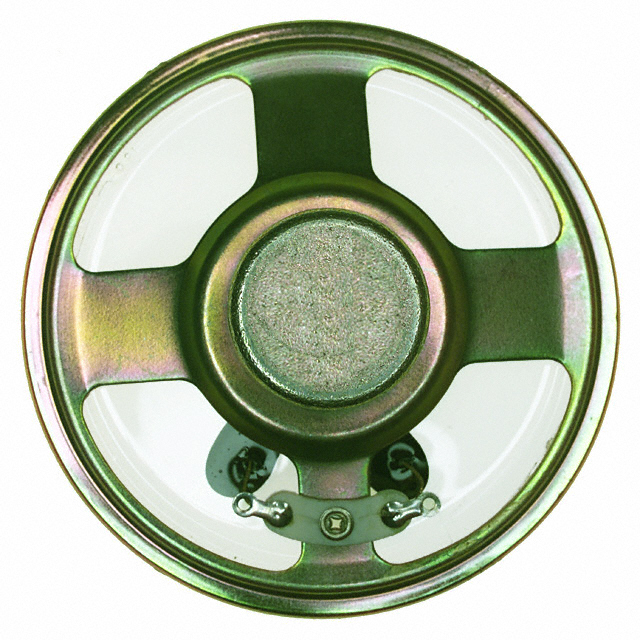

GA0506M

SPEAKER ALNICO 8OHM .25W 50MM SQ

product image

GA0506M Picture
See larger image
SeekIC No. : 002845869 Detail

GA0506M: SPEAKER ALNICO 8OHM .25W 50MM SQ

GA0506M Data Sheet

floor Price/Ceiling Price

US $ 1.28~1.28 / Piece | Get Latest Price
Part Number:
GA0506M
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1000
  • Unit Price
  • $1.28
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: GA Manufacturer: CUI Inc
Type: Magnetic Frequency Range: 500Hz ~ 10kHz
Impedance: 8 Ohm Sound Pressure Level: 79dB
Operating Supply Current : 52 mA Power - Rated: 0.25W
Power - Max: 0.5W Height: 19.00mm
Size / Dimension: 50.00mm L x 50.00mm W Shape: Round, Square Frame
Termination: Solder Eyelet(s) Material - Cone: Mylar

Description

Manufacturer: CUI Inc
Type: Magnetic
Impedance: 8 Ohm
Material - Cone: Mylar
Power - Max: 0.5W
Power - Rated: 0.25W
Termination: Solder Eyelet(s)
Size / Dimension: 50.00mm L x 50.00mm W
Shape: Round, Square Frame
Height: 19.00mm
Material - Magnet: Alnico
Series: GA
Frequency Range: 500Hz ~ 10kHz
Sound Pressure Level: 79dB


Specifications

  • diameter: 57 mm/2.25 inches
  • depth: 18.5 mm
  • impedance: 8Ω
  • s.p. level: 79 dB
  • resonance frequency: 500 Hz
  • frequency range: fo-10K
  • nominal input: 0.25W
  • handling capacity (max input): 0.5W
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationGA0506M
    VendorCUI Inc
    CategoryAudio Products
    Frequency Range500Hz ~ 10kHz
    Impedance8 Ohm
    TypeMagnetic
    Size / Dimension50mm Dia x 18.5mm H
    Sound Pressure Level79dB
    Power - Rated0.25W
    Power - Max0.5W
    TerminationSolder Eyelet (s)
    Material - ConeMylar
    Material - MagnetAlnico
    ShapeRound, Square Frame
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names GA0506M
    GA0506M
    102 1185 ND
    1021185ND
    102-1185
