GA0776M

SPEAKER ALNICO 8OHM 1W 77MM SQR

product image

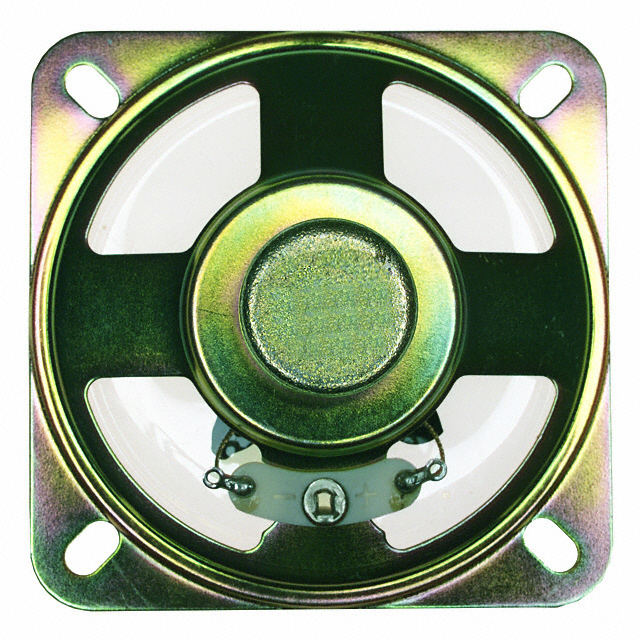

GA0776M Picture
See larger image
SeekIC No. : 002845844 Detail

GA0776M: SPEAKER ALNICO 8OHM 1W 77MM SQR

GA0776M Data Sheet

floor Price/Ceiling Price

US $ 1.48~1.48 / Piece | Get Latest Price
Part Number:
GA0776M
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1000
  • Unit Price
  • $1.48
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: GA Manufacturer: CUI Inc
Type: Magnetic Frequency Range: 320Hz ~ 25kHz
Impedance: 8 Ohm Sound Pressure Level: 90dB
Operating Supply Current : 52 mA Power - Rated: 1W
Power - Max: 2W Height: 25.40mm
Size / Dimension: 77.00mm L x 77.00mm W Shape: Round, Square Frame
Termination: Solder Eyelet(s) Material - Cone: Mylar

Description

Manufacturer: CUI Inc
Type: Magnetic
Impedance: 8 Ohm
Material - Cone: Mylar
Termination: Solder Eyelet(s)
Sound Pressure Level: 90dB
Shape: Round, Square Frame
Power - Rated: 1W
Power - Max: 2W
Size / Dimension: 77.00mm L x 77.00mm W
Material - Magnet: Alnico
Series: GA
Height: 25.40mm
Frequency Range: 320Hz ~ 25kHz


Specifications

  • diameter: 77 mm/3 inches
  • depth: 26 mm
  • impedance: 8Ω
  • s.p. level: 90 dB/W ±3dB
  • resonance frequency: 320 Hz
  • frequency range: fo-25K
  • nominal input: 1.0W
  • handling capacity (max input): 2.0W
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationGA0776M
    VendorCUI Inc
    CategoryAudio Products
    Frequency Range320Hz ~ 25kHz
    Impedance8 Ohm
    TypeMagnetic
    Size / Dimension77mm Dia x 26mm H
    Sound Pressure Level90dB
    Power - Rated1W
    Power - Max2W
    TerminationSolder Eyelet (s)
    Material - ConeMylar
    Material - MagnetAlnico
    ShapeRound, Square Frame
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names GA0776M
    GA0776M
    102 1191 ND
    1021191ND
    102-1191
