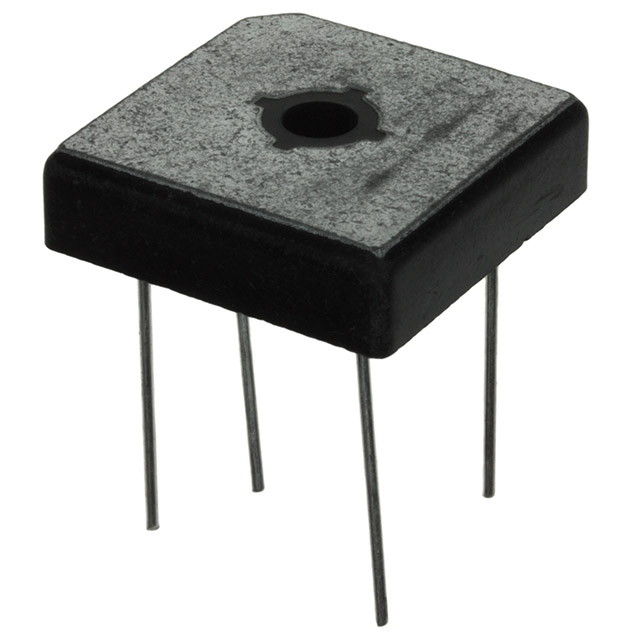

GBPC6005 Product Image

GBP Series Datasheet download

Five Points

Part Number: GBPC6005



MFG: Vishay

Package Cooled: KBPC6

D/C: 2007



Urgent Purchase

GBPC6005 Maximum Ratings


SYMBOLS
GBPC
6005
GBPC
601
GBPC
602
GBPC
604
GBPC
606
GBPC
608
GBPC
610
UNITS
Maximum repetitive peak reverse voltage
VRRM
50
100
200
400
600
800
1000
Volts
Maximum RMS bridge input voltage
VRMS
35
70
140
280
420
560
700
Volts
Maximum DC blocking voltage
VDC
50
100
200
400
600
800
1000
Volts
Maximum average forward     TC=50°C (NOTE1, 2)
rectified output current at      TA=40°C (NOTE 3)
I(AV)
6.0
3.0
Amps
Peak forward surge current single sine-wave
superimposed on rated load (JEDEC Method)
IFSM
175.0
Amps
Rating for fusing (t<8.3ms)
I2t
127.0
A2sec
Maximum instantaneous forward voltage drop
per leg at 3.0 Amperes
VF
1.0
Volts
Maximum DC reverse current at rated   TA=25°C
DC blocking voltage per leg                   TA=125°C
IR
5.0
500.0
A
Typical junction capacitance per leg (NOTE 4)
CJ
186.0
90.0
pF
Typical thermal resistance per leg (NOTE 3)
                                                      (NOTE 2)
RQJA
RQJC
22.0
7.3
°C/W
Operating junction temperature range
TJ
-55 to +150
°C
Storage temperature range
TSTG
-55 to +150
°C

GBPC6005 Features

Plastic package has carries Underwriters Laboratory Flammability Classification 94V-0
 This series is UL listed under recognized under Component Index, file number E54214
 Glass passivated chip junctions
 High case dielectric strength of 1500 VRMS
 Typical IR less than 0.5A
High forward surge current capability
 Ideal for printed circuit boards
 High temperature soldering guaranteed: 260°C/10 seconds at 5lbs. (2.3 kg) tension
