Purchase GF1A, In-stock GF1A From SeekIC.
MFG:80000 Package Cooled:FAIRCHILD D/C:2008
- Table of contents:
GF1A
-
Suppliers
DataSheet
General Description
GF1A Maximum Ratings
|
SYMBOL |
GF1 |
UNITS | |||||||
| Device marking code |
A |
B |
D |
G |
J |
K |
M | ||
| Maximum repetitive peak reverse voltage |
VRRM |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
Volts |
| Maximum RMS voltage |
VRMS |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
Volts |
| Maximum DC blocking voltage |
VDC |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
Volts |
| Maximum average forward rectified current (SEE FIG.1) |
I(AV) |
1.0 |
Amps | ||||||
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) |
IFSM |
30.0 |
Amps | ||||||
| Maximum instantaneous forward voltage at 1.0 A |
VF |
1.10 |
1.20 |
Volts | |||||
| Maximum DC reverse current TA=25 at rated DC blocking voltage TA=125 |
IR |
5 50.0 |
uA | ||||||
| Typical reverse recovery time (NOTE 1) |
trr |
2.0 |
s | ||||||
| Typical junction capacitance (NOTE 2) |
CJ |
15.0 |
pF | ||||||
| Typical thermal resistance (NOTE 3) |
RJA RJL |
80.0 26.0 |
/W | ||||||
| Operating junction and storage temperature range |
TJ, TSTG |
-65 to +175 |
|||||||
(1) Reverse recovery test conditions: IF=0.5A, IR=1.0A, Irr=0.25A
(2) Measured at 1.0 MHz and applied VR=4.0 Volts
(3) Thermal resistance from junction to ambient and from junction to lead
P.C.B. mounted on 0.2 x 0.2" (5.0 x 5.0mm) copper pad areas
GF1A Features
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Ideal for surface mount automotive applications
· High temperature metallurgically bonded construction
· Glass passivated cavity-free junction
· Capable of meeting environmental standards of MIL-S-19500
· Built-in strain relief
· Easy pick and place
· High temperature soldering guaranteed: 450°C/5 seconds at terminals
· Complete device submersible temperature of 265°C for 10 seconds in solder bath
· Ideal for surface mount automotive applications
· High temperature metallurgically bonded construction
· Glass passivated cavity-free junction
· Capable of meeting environmental standards of MIL-S-19500
· Built-in strain relief
· Easy pick and place
· High temperature soldering guaranteed: 450°C/5 seconds at terminals
· Complete device submersible temperature of 265°C for 10 seconds in solder bath
GF1A
PDF/DataSheet Download
- Datasheet: GF1A
- File Size: 92585 KB
- Manufacturer: GE [General Semiconductor]
- Click here to Download
- ·GF10A
- ZOWIE [Zowie Technology Corporation]
- SURFACE MOUNT GLASS PASSIVATED JUNCTION RECTIFIER
- 65194 KB
- ·GF10B
- ZOWIE [Zowie Technology Corporation]
- SURFACE MOUNT GLASS PASSIVATED JUNCTION RECTIFIER
- 65194 KB
- ·GF10D
- ZOWIE [Zowie Technology Corporation]
- SURFACE MOUNT GLASS PASSIVATED JUNCTION RECTIFIER
- 65194 KB
- ·GF10G
- ZOWIE [Zowie Technology Corporation]
- SURFACE MOUNT GLASS PASSIVATED JUNCTION RECTIFIER
- 65194 KB
- ·GF10J
- ZOWIE [Zowie Technology Corporation]
- SURFACE MOUNT GLASS PASSIVATED JUNCTION RECTIFIER
- 65194 KB
- ·GF10K
- ZOWIE [Zowie Technology Corporation]
- SURFACE MOUNT GLASS PASSIVATED JUNCTION RECTIFIER
- 65194 KB
- ·GF10M
- ZOWIE [Zowie Technology Corporation]
- SURFACE MOUNT GLASS PASSIVATED JUNCTION RECTIFIER
- 65194 KB
- ·GF10N
- ZOWIE [Zowie Technology Corporation]
- SURFACE MOUNT GLASS PASSIVATED JUNCTION RECTIFIER
- 65194 KB
GF1A Relative Products
GF-165-0003
SWITCH SLIDE 3PDT RTANG PAN MT
GF-1623-0001
SWITCH PWR SLIDE SPST 16A BLACK
GF-1623-0000
SWITCH SLIDE SPST 3A BLACK

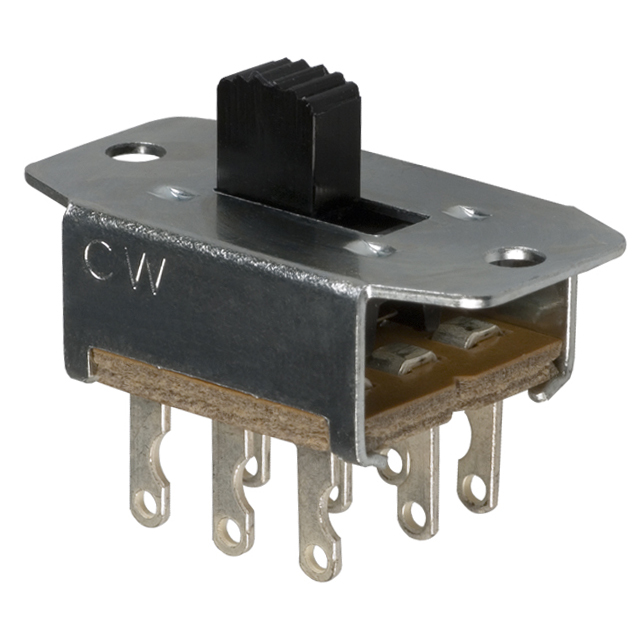

GF-161-3011
