Purchase GJRF400, In-stock GJRF400 From SeekIC.
Part Number: GJRF400
Description: The GJRF400 is a single chip integrated circuit for radiobased frequency hopping spread spectrum commu...
- Table of contents:
GJRF400
-
Suppliers
DataSheet
General Description
GJRF400 General Description
The GJRF400 is a single chip integrated circuit for radiobased frequency hopping spread spectrum communication. (FHSS) The circuit is easily applied and RF-knowledge requirements are minimal. The circuit can be utilised in homes, health care and industry in various ways and can be applied in alarms, garage ports, remote controls, etc., and in more complex systems for control,monitoring and low data-rate communication between computers. A typical system consists of a microprocessor and a radio circuit plus some external components.
GJRF400 Features
All active RF circuits on a single chip
5mW output power
-110dBm sensitivity
9600 bits/ second data rate
3 Volt supply
16mA in receive, 25mA in transmit
4 wire connection for control
3 wire external gain control
5mW output power
-110dBm sensitivity
9600 bits/ second data rate
3 Volt supply
16mA in receive, 25mA in transmit
4 wire connection for control
3 wire external gain control
GJRF400 Typical Application
Wireless local networks
Frequency hopping high security alarms
2 way paging
Telemetry
Environmental control systems
Wireless data repeaters
Personnel, patient logging
Access and movement monitoring
Remote Metering
Barcode Readers
Frequency hopping high security alarms
2 way paging
Telemetry
Environmental control systems
Wireless data repeaters
Personnel, patient logging
Access and movement monitoring
Remote Metering
Barcode Readers

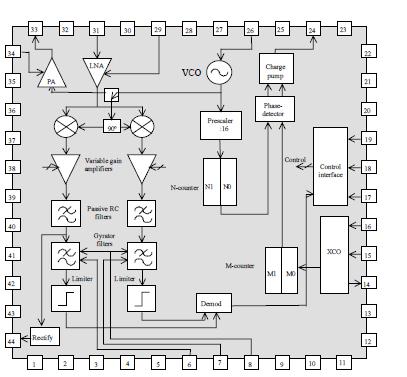

GJRF400 Connection Diagram
GJRF400
PDF/DataSheet Download
- Datasheet: GJRF400
- File Size: 120246 KB
- Manufacturer: ETC [ETC]
- Click here to Download
