Part Number: GL3361



MFG: LGS

Package Cooled: DIP



Description: The GL3361 is designed for use in FM dual conversion communications equipment. This device contains an...


Urgent Purchase

GL3361 General Description


The GL3361 is designed for use in FM dual conversion communications equipment. This device contains an Oscillator, Mixer, Limiting Amplifier, Filter Amplifier and Squelch circuitry.

GL3361 Maximum Ratings

Characteristics
Pin
Symbol
Value
Unit
Power Supply Voltage
4
Vcc(max)
10
Vdc
Operating Supply Voltage Range
4
Vcc
2.0 to 8.0
Vdc
Operating Temperature Range
-
Ta
0 to +70
··
Storage Temperature Range
-
Tstg
-65 to +150
··
* Notice : Absolute maximum ratings are values beyond which permanent damage to the device may occur.

GL3361 Features

• Operating Voltage : 2.0 ~ 8.0 V
• Low Power Consumption (2.6mA typical @ Vcc=4.0Vdc)
• Excellent Input Sensitivity (-3dB limiting=2.6§ Åtypical)
• Minimum Number of External Parts Required
• Full ESD Protection
• Package Type : 16 DIP/SOP

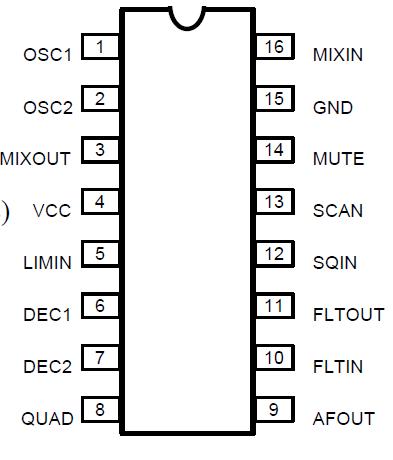

GL3361 Connection Diagram

GL3361 Connection Diagram
