General Description
GL640USB-A General Description
The GL640USB is a low-cost, single-chip embedded controller designed for connecting an IEEE 1284 parallel port peripheral to USB. It is suitable for applications where the IC is mounted on a PCB inside a product or stand-alone applications where the chip resides in a cable connecting a standard parallel port device to an USB-capable omputer.
The GL640USB firmware/driver will allow peripheral vendors to easily migrate parallel port device to USB.
GL640USB-A Maximum Ratings
|
SYMBOL |
Description |
MIN |
MAX |
|
VCC |
DC supply voltage |
-0.5V |
+7V |
|
VI |
DC input voltage |
-0.5V |
VCC+0.5V |
|
V I/O |
DC input voltage range for I/O |
-0.5V |
VCC+0.5V |
|
VAI/O |
DC input voltage for USB D+/D- pins |
-0.5 |
VCC+0.5V |
|
V I/OZ |
DC voltage applied to outputs in High Z state |
-0.5V |
VCC+0.5V |
|
VESD |
static discharge voltage |
4000V |
GL640USB-A Features
`Low-cost solution for full-speed USB device
`Applications Printer, Scanner, PC Camera, External Storage Device, CD-ROM
`IEEE 1284 interface supports bi-directional communication
`On-chip EPP engine
`On-chip 8-bit micro-controller
`USB Specification Compliance
- Conforms to USB 12Mbps Specification, Version 1.0
- Supports 1 device address and 4 endpoints
`2 sets of 64-byte FIFO with dynamic allocation
- a. 64-In/64-Out
- b. 64-In0/64-In1 ping pong buffer
- c. 64-Out0/64-Out1 ping pong buffer
`Integrated USB transceiver
`On-chip 3.3v regulator
`Improved output drivers with slew-rate control to reduce EMI
`12MHz external clock
`On-chip PLL to support 48MHz internal clock
`Internal power-on reset(POR)
`Supports suspend/normal mode power management
`Customized firmware/driver for scanner application
`The driver allows current Win98/Win95 OSR-2 printer drivers to print seamlessly to USB
`Fully plug & play compatible
`Single-chip solution in cost saving 40-pin SOJ(GL640USB) / 48-pin LQFP(GL640USB-A)
`Special pad-design to support EPP/USB dual-interface application
`Applications Printer, Scanner, PC Camera, External Storage Device, CD-ROM
`IEEE 1284 interface supports bi-directional communication
`On-chip EPP engine
`On-chip 8-bit micro-controller
`USB Specification Compliance
- Conforms to USB 12Mbps Specification, Version 1.0
- Supports 1 device address and 4 endpoints
`2 sets of 64-byte FIFO with dynamic allocation
- a. 64-In/64-Out
- b. 64-In0/64-In1 ping pong buffer
- c. 64-Out0/64-Out1 ping pong buffer
`Integrated USB transceiver
`On-chip 3.3v regulator
`Improved output drivers with slew-rate control to reduce EMI
`12MHz external clock
`On-chip PLL to support 48MHz internal clock
`Internal power-on reset(POR)
`Supports suspend/normal mode power management
`Customized firmware/driver for scanner application
`The driver allows current Win98/Win95 OSR-2 printer drivers to print seamlessly to USB
`Fully plug & play compatible
`Single-chip solution in cost saving 40-pin SOJ(GL640USB) / 48-pin LQFP(GL640USB-A)
`Special pad-design to support EPP/USB dual-interface application

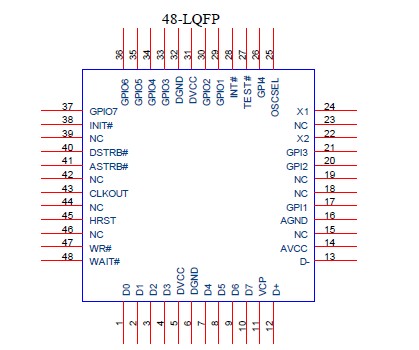

GL640USB-A Connection Diagram
GL640USB-A
PDF/DataSheet Download
- Datasheet: GL640USB-A
- File Size: 2076247 KB
- Manufacturer: ETC [ETC]
