Purchase GL6965, In-stock GL6965 From SeekIC.
MFG:LGS Package Cooled:DIP
Part Number: GL6965
MFG: LGS
Package Cooled: DIP
Description: The GL6965 is a bipolar integrated circuit for use in electronic telephones.The GL6965 has low...
- Table of contents:
GL6965
-
Suppliers
DataSheet
General Description
GL6965 General Description
The GL6965 is a bipolar integrated circuit for use in electronic telephones.
The GL6965 has low operating voltage, it provides an excellent branch performance.
It has line voltage increasing circuit by the exter-nal terminal. Transmitting and receiving gains automatically vary according to the line current.
GL6965 Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
|
Line Voltage |
LD |
15 |
V |
|
Line Current |
IL |
150 |
mA |
|
Power Dissipation |
PD |
1300 |
mW |
|
Operating Temperature |
Topr |
-30 ~ 70 |
°C |
|
Storage Temperature |
Tstg |
-55 ~ 150 |
°C |
GL6965 Features
• Externally adjustable transmitting, receiving and Sidetone gains.
• Switching between transmitting output and DTMF output is possible.
• Direct interface with light and compact ceramic transmitter-receiver is possible.
• Receiver follow impedance type can also be used.
• Gain is automatically controlled according to the line current (Auto-PAD function).
• The line voltage can be increased by the external terminal (Up function).
• PKG is 20 pin DIP.

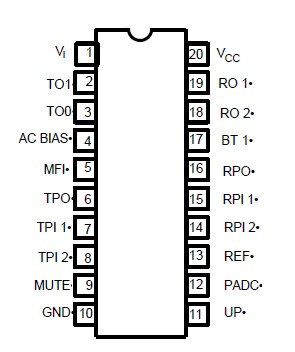

GL6965 Connection Diagram
GL6965
