Part Number: GLT5160L16
Description: The GLT5160L16 is a 2-bank x 524288-word x 16-bit Synchro-nous DRAM, with LVTTL interface. All inputs ...
- Table of contents:
GLT5160L16
-
Suppliers
DataSheet
General Description
GLT5160L16 General Description
The GLT5160L16 is a 2-bank x 524288-word x 16-bit Synchro-nous DRAM, with LVTTL interface. All inputs and outputs are referenced to the rising edge of CLK. The GLT5160L16 achieves very high speed data rate up to 166 MHz, and is suitablefor main memory or graphic memory in computer systems.
GLT5160L16 Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
|
VDD |
Supply Voltage |
with respect to VSS |
-1.0 to 4.6 |
V |
|
VDDQ |
Supply Voltage for Output |
with respect to VSSQ |
-1.0 to 4.6 |
V |
|
VI |
Input Voltage |
with respect to VSS |
-1.0 to 4.6 |
V |
|
VO |
Output Voltage |
with respect to VSSQ |
-1.0 to 4.6 |
V |
|
IO |
Output Current |
|
50 |
mA |
|
PD |
Power Dissipation |
TA= 25 °C |
1000 |
mW |
|
TOPR |
Operating Temperature |
comsumer |
0 to 70 |
°C |
|
Industrial |
-40 to 85 |
°C | ||
|
TSTG |
Storage Temperature |
|
-65 to 150 |
°C |
GLT5160L16 Features
*Single 3.3 V ±0.3 V power supply
*Clock frequency 100 MHz / 125 MHz / 143 MHz/166 MHz
*Fully synchronous operation referenced to clock rising edge
*Dual bank operation controlled by BA (Bank Address)
*CAS latency- 2 / 3 (programmable)
*Burst length- 1 / 2 / 4 / 8 & Full Page (programmable)
*Burst type- sequential / interleave (programmable)
*Industrial grade available
*Byte control by DQMU and DQML
*Column access - random
*Auto precharge / All bank precharge controlled by A[10]
*Auto refresh and Self refresh
*4096 refresh cycles / 64 ms
*LVTTL Interface
*400-mil, 50-Pin Thin Small Outline Package (TSOP II) with 0.8 mm lead pitch
*60-Ball, 6.4mmx10.1mm VFBGA package with 0.65mm Ball pitch & 0.35mm Ball diameter.
*Clock frequency 100 MHz / 125 MHz / 143 MHz/166 MHz
*Fully synchronous operation referenced to clock rising edge
*Dual bank operation controlled by BA (Bank Address)
*CAS latency- 2 / 3 (programmable)
*Burst length- 1 / 2 / 4 / 8 & Full Page (programmable)
*Burst type- sequential / interleave (programmable)
*Industrial grade available
*Byte control by DQMU and DQML
*Column access - random
*Auto precharge / All bank precharge controlled by A[10]
*Auto refresh and Self refresh
*4096 refresh cycles / 64 ms
*LVTTL Interface
*400-mil, 50-Pin Thin Small Outline Package (TSOP II) with 0.8 mm lead pitch
*60-Ball, 6.4mmx10.1mm VFBGA package with 0.65mm Ball pitch & 0.35mm Ball diameter.

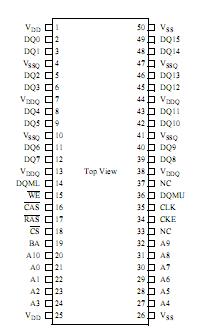

GLT5160L16 Connection Diagram
GLT5160L16-6FJ
