Purchase GLT725608, In-stock GLT725608 From SeekIC.
MFG:IC Package Cooled:SOP
Part Number: GLT725608
MFG: IC
Package Cooled: SOP
Description: GLT725608 is high performance 256K bit static random access memory organized as 32K by 8 bits and oper...
- Table of contents:
GLT725608
-
Suppliers
DataSheet
General Description
GLT725608 General Description
GLT725608 is high performance 256K bit static random access memory organized as 32K by 8 bits and operate at a single 5 volt supply. Fabricated with G-Link Technology's very advanced CMOS submicron technology, GLT725608 offer a combination of features: very high speed and very low stand-by current. In addition, this device also supports easy memory expansion with an active LOW chip enable ( CE) as well as an active LOW output enable ( OE) and three state outputs.
GLT725608 Maximum Ratings
Ambient Temperature
Under Bias...................................-10°C to+80°C
Storage Temperature(plastic)....-55°C to+125°C
Voltage Relative to GND..................-0.5V to +7.0V
Data Output Current.....................................50mA
Power Dissipation..........................................1.0W
Under Bias...................................-10°C to+80°C
Storage Temperature(plastic)....-55°C to+125°C
Voltage Relative to GND..................-0.5V to +7.0V
Data Output Current.....................................50mA
Power Dissipation..........................................1.0W
GLT725608 Features
* 32K x 8-bit organization.
* Very high speed 12,15,20 ns.
* Low standby power.
* Fully static operation
* 5V±10% power supply.
* TTL compatible I/O.
* Three state output.
* Chip enable for simple memory expansion.
* Available 300 mil SOJ, 28 pin TSOP and 330 mil SOP Packages.
* Industrial Grade Available (-40°C ~ 85°C).

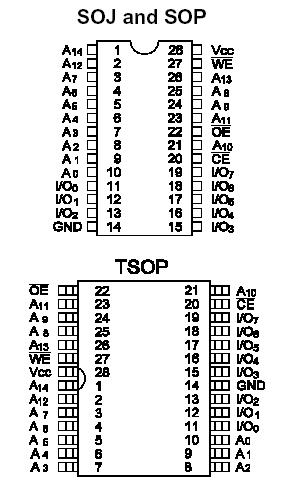

GLT725608 Connection Diagram
GLT725608-12FB
PDF/DataSheet Download
- Datasheet: GLT725608-12FB
- File Size: 1146122 KB
- Manufacturer: ETC [ETC]
- Click here to Download
