General Description
GM62093A General Description
The GM62093A contains a 12´ 8 array of crosspoint together with a 7 to 96 Line decoder and latch circuits. The GM62093A employs LG's advanced high voltage CMOS process technology. It provides extra low operating current and low power dissipation.
Anyone of the 96 switchs can be addressed by selecting the ap-propriate 7 input bits. The selected turned on or off by applying a logicalone or zero to the data in and the strobe input at logical one. A reset signal can be used to turn off all the switches together when is switched at logical one. The GM62093A is avail-able in a 40 lead dual in-line plastic and ceramic package.
GM62093A Maximum Ratings
| SYMBOL | PARAMETER | MIN | MAX | UNIT |
| VDD | DC Supply Voltage | -0.5 | 18 | V |
| VIN | Input Voltage Range | -0.5 | V+0.5 | V |
| IIN | DC Input current | ±10 | mA | |
| P(P-DIP) (C-DIP) |
Power Dissipation | 0.6 1 |
W | |
| TOPR | Operation Temperature Range | 0 | 70 | |
| TSTG | Storage Temperature Range | -65 | 150 |
GM62093A Features
• CMOS 12×8 Cross Point Switch with Control Memory
• Low On Resistance
• Internal Control Latches
• DRon 15 W Max
• Less Than 1% Total Distortion at 0 dbm
• Extra Low Operating Current
• Extra Low Cross-Talk Between Any Two Switches
• Standard CMOS Noise Immunity
• Low On Resistance
• Internal Control Latches
• DRon 15 W Max
• Less Than 1% Total Distortion at 0 dbm
• Extra Low Operating Current
• Extra Low Cross-Talk Between Any Two Switches
• Standard CMOS Noise Immunity
GM62093A Typical Application
• PBX Systems
• Mobile Radio
• Test Eqiepment Instrumentation
• Analog/ Digital Multiplexer
• Mobile Radio
• Test Eqiepment Instrumentation
• Analog/ Digital Multiplexer

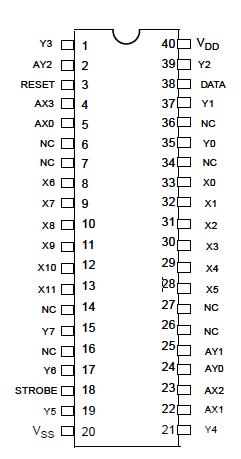

GM62093A Connection Diagram
GM62093A
PDF/DataSheet Download
- Datasheet: GM62093A
- File Size: 89271 KB
- Manufacturer: HYNIX [Hynix Semiconductor]
- Click here to Download
