Part Number: GM71C
Description: The GM71C(S)17403C/CL is the new generation dynamic RAM organized 4,194,304 words x 4 bit. GM71C(S)174...
- Table of contents:
GM71C
-
Suppliers
DataSheet
General Description
GM71C General Description
The GM71C(S)17403C/CL is the new generation dynamic RAM organized 4,194,304 words x 4 bit. GM71C(S)17403C/CL has realized higher density, higher performance and various functions by utilizing advanced CMOS process technology. The GM71C(S)17403C/CL offers Extended Data Out (EDO) Mode as a high speed access mode. Multiplexed address inputs permit the GM71C(S)17403C/CL to be packaged in a standard 300 mil 24(26) pin SOJ and a standard 300mil 24(26) pin plastic TSOP II. The package size provides high system bit densities and is compatible with widely available automated testing and insertion equipment. System oriented features include single power supply 5V+/-10% tolerance, direct interfacing capability with high performance logic families such as Schottky TTL.
GM71C Maximum Ratings
| Symbol | Parameter | Rating | Unit |
| TA | Ambient Temperature under Bias | 0 ~ 70 | C |
| TSTG | Storage Temperature (Plastic) | -55 ~ 125 | C |
| VIN/VOUT | Voltage on any Pin Relative to VSS | -1.0 ~ 7.0 | V |
| VCC | Voltage on VCC Relative to VSS | -1.0 ~ 7.0 | V |
| IOUT | Short Circuit Output Current | 50 | mA |
| PD | Power Dissipation | 1.0 | W |
GM71C Features
* 4,194,304 Words x 4 Bit Organization
* Extended Data Out Mode Capability
* Single Power Supply (5V+/-10%)
* Fast Access Time & Cycle Time
* Low Power Active : 660/605/550mW (MAX)
Standby : 11mW (CMOS level : MAX)
: 0.83mW (L-version : MAX)
* RAS Only Refresh, CAS before RAS Refresh,
Hidden Refresh Capability
* All inputs and outputs TTL Compatible
* 2048 Refresh Cycles/32ms
* 2048 Refresh Cycles/128ms (L-version)
* Battery Backup Operation (L-version)
* Test Function : 16bit parallel test mode
* Extended Data Out Mode Capability
* Single Power Supply (5V+/-10%)
* Fast Access Time & Cycle Time
* Low Power Active : 660/605/550mW (MAX)
Standby : 11mW (CMOS level : MAX)
: 0.83mW (L-version : MAX)
* RAS Only Refresh, CAS before RAS Refresh,
Hidden Refresh Capability
* All inputs and outputs TTL Compatible
* 2048 Refresh Cycles/32ms
* 2048 Refresh Cycles/128ms (L-version)
* Battery Backup Operation (L-version)
* Test Function : 16bit parallel test mode

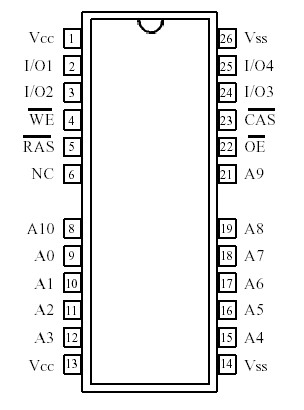

GM71C Connection Diagram
GM71C17400C
PDF/DataSheet Download
- Datasheet: GM71C17400C
- File Size: 102089 KB
- Manufacturer: HYNIX [Hynix Semiconductor]
- Click here to Download
