Part Number: GMS34140T



MFG: AB0V/MagnaChip

Package Cooled: 07+/08+



Description: The GMS340 series are remote control transmitter which uses CMOS technology, and the EPROM version of GMS34XXX series.<...


Urgent Purchase

GMS34140T General Description


The GMS340 series are remote control transmitter which uses CMOS technology, and the EPROM version of GMS34XXX series.

This enables transmission code outputs of different configurations, multiple custom code output, and double push key output for easy fabrication.

The GMS340 series are suitable for remote control of TV, VCR, FANS, Airconditioners, Audio Equipments, Toys, Games etc.

GMS34140T Maximum Ratings

Parameter Symbol Max. rating Unit
Supply Voltage VDD -0.3 ~ 7.0 V
Programming Voltage VPP -0.3 ~ 13.5 V
Power dissipation PD 700 * mW
Storage temperature range Tstg -55 ~ 125 ..
Input voltage VIN -0.3 ~ VDD+0.3 V
Output voltage VOUT -0.3 ~ VDD+0.3 V

GMS34140T Features

· Program memory : 512bytes for GMS34004T 1,024 bytes for GMS34112T/140T
· Data memory : 32 ¡¿ 4 bits
· 43 types of instruction set
· 3 levels of subroutine nesting
· 1 bit output port for a large current (REMOUT signal)
· Operating frequency :300KHz~500KHz at KHz version 2.4MHz~4MHz at MHz version 300KHz~4.2MHz at WIDE version
· Instruction cycle : fOSC/6 at KHz and WIDE version fOSC/48 at MHz version
· CMOS process (3.0V or 5.0V power supply)
· Stop mode (Through internal instruction)
· Released stop mode by key input
· Built in capacitor for ceramic oscillation circuit at KHz version
· Built in a watch dog timer (WDT)
· Low operating voltage : 2.2~4.5V (at KHz and MHz version) Normal operating voltage: 4.0~5.0V (at WIDE version)

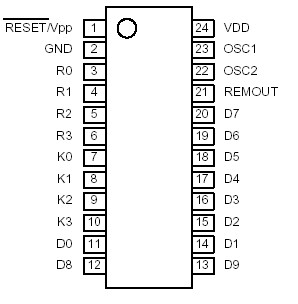

GMS34140T Connection Diagram

GMS34140T Connection Diagram
