General Description
GMS81608 General Description
The GMS81604/08 is a high-performance CMOS 8-bit microcontroller with 4K or 8K bytes of ROM. The device is one of GMS800 family. The LG Semicon GMS81604/08 is a powerful microcontroller which provides a highly flexible and cost effective solution to many embedded control applications. The GMS81604/08 provides the following standard features: 8K bytes of ROM, 256 bytes of RAM, 35 I/O lines(33 lines for 40PDIP), 16-bit or 8-bit timer/counter, a precision analog to digital converter, on-chip oscillator and clock circuitry. In addition, the GMS81604/08 supports power saving modes to reduce power consumption. The Stop Mode saves the RAM contents but freezes the oscillator disabling all other chip functions until the next hardware reset or external interrupt.
GMS81608 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . .. . .. . -0.3 to +6.0 V
Storage Temperature . . . . . . . . . .. . . . . -40 to +125
Voltage on any pin with
respect to Ground (VSS) . . . . . . . -0.3 to VDD+0.3 V
Maximum current out of VSS pin . . . .. . .. . . . . . 150 mA
Maximum current into VDD pin . . . . . . . .. . . . . . 100 mA
Maximum current sunk by (IOL per I/O Pin) . . . . 20 mA
Maximum output current sourced
by (IOH per I/O Pin) . . . . . . . . . . . . . .. . .. . . . 8 mA
Maximum current (S IOL) . . . . . . . . . . . . .. . .. . 120 mA
Maximum current (S IOH) . . . . . . . . . . . . .. . .. . . 50 mA
Storage Temperature . . . . . . . . . .. . . . . -40 to +125
Voltage on any pin with
respect to Ground (VSS) . . . . . . . -0.3 to VDD+0.3 V
Maximum current out of VSS pin . . . .. . .. . . . . . 150 mA
Maximum current into VDD pin . . . . . . . .. . . . . . 100 mA
Maximum current sunk by (IOL per I/O Pin) . . . . 20 mA
Maximum output current sourced
by (IOH per I/O Pin) . . . . . . . . . . . . . .. . .. . . . 8 mA
Maximum current (S IOL) . . . . . . . . . . . . .. . .. . 120 mA
Maximum current (S IOH) . . . . . . . . . . . . .. . .. . . 50 mA
GMS81608 Features
·4K/ 8K On-chip Program Memory
·256 Bytes of On-Chip Data RAM
·Instruction execution time: 0.5us at 8MHz
·2.4V to 5.5V Operating Range
·1~8 MHz Operating frequency
·Basic Interval Timer
·Four 8-Bit Timer/ Counters (can be used as two 16-bit)
·Four external interrupt ports
·Two Programmable Clock Out
·One Buzzer Driving port
·31 Programmable I/O, 4 Input pins,
·Twelve Interrupt Sources
·All LED Direct Drive Output Ports
·8-Channel 8-Bit On-Chip Analog to Digital Converter
·Power Fail Processor (Noise immunity circuit)
·Power Down Mode (Stop Mode)
·256 Bytes of On-Chip Data RAM
·Instruction execution time: 0.5us at 8MHz
·2.4V to 5.5V Operating Range
·1~8 MHz Operating frequency
·Basic Interval Timer
·Four 8-Bit Timer/ Counters (can be used as two 16-bit)
·Four external interrupt ports
·Two Programmable Clock Out
·One Buzzer Driving port
·31 Programmable I/O, 4 Input pins,
·Twelve Interrupt Sources
·All LED Direct Drive Output Ports
·8-Channel 8-Bit On-Chip Analog to Digital Converter
·Power Fail Processor (Noise immunity circuit)
·Power Down Mode (Stop Mode)

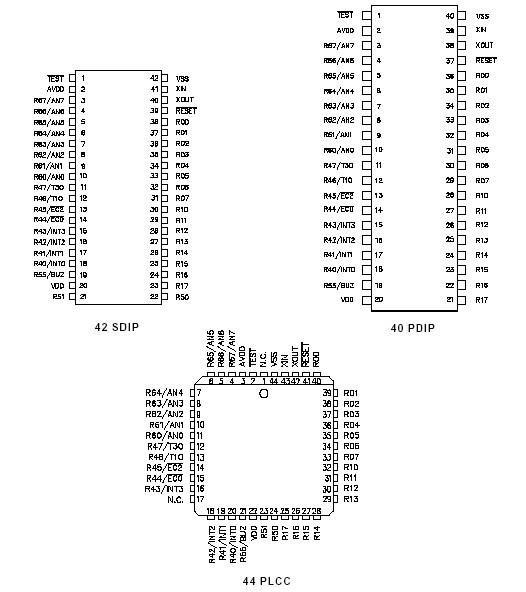

GMS81608 Connection Diagram
GMS81608
PDF/DataSheet Download
- Datasheet: GMS81608
- File Size: 493275 KB
- Manufacturer: HYNIX [Hynix Semiconductor]
- Click here to Download
