GO1515

Features:

• generates 1.485GHz or 1.485/1.001GHz signal for HD-LINX™ ICs
• low current consumption
• 50Ω output impedance
• operates from a single 5V supply
• 8 pin tape on reel




Application

·VCO for the following HD-LINX™ ICs: GS1515, GS1522,
·GS1540, GS1545.

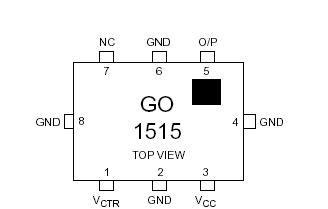

Pinout






Description


The GO1515 is a self contained, miniature Voltage Controlled Oscillator (VCO) that is used in conjunction with Gennum's HD-LINX™ ICs. It produces a clean 1.485GHz reference clock signal for such devices as the GS1515 HDTV Reclocker and other HD-LINX™ devices. The control voltage range is from 3.10 volts to 4.65 volts and is derived from the on-chip PLLs. The GO1515 frequency can be pulled approximately 16MHz for every one volt of control.

The output level is approximately 1.0dBm with low spurious and noise content. It is designed to drive 50ohm strip lines. The GO1515 VCO is used with the following HD-LINX™ ICs; GS1515, GS1522, GS1540, GS1545 and is ordered as a separate item. The VCO requires a single 5V supply and draws a maximum of 15mA of current. IGO1515 is packaged in a miniature 8-pin proprietary surface mount package and operates over the normal commercial temperature range of 0°C to +70°C.
