GP1A91LRJ00F

Sensing Method: Transmissive
Mounting Type: Through Hole
Package / Case: PCB Mount
Output Configuration: NPN - Open Collector
Series: OPIC™
Manufacturer: Sharp Microelectronics
Sensing Distance: 0.047" (1.2mm)
Current - Supply: 700µA
Voltage - Supply: 1.4 V ~ 7 V
Response Time: 0.6µs, 0.2µs


Features:

1. Transmissive with OPIC output
2. Highlights:
• Compact Size
3. Key Parameters:
• Gap Width : 1.2mm
• Slit Width (detector side): 0.23mm
• Package : 3.7×2.6×3.1mm
4. Lead free and RoHS directive compliant


Application

1. Detection of object presence or motion.
2. Example : printer, lens control for camera


Description

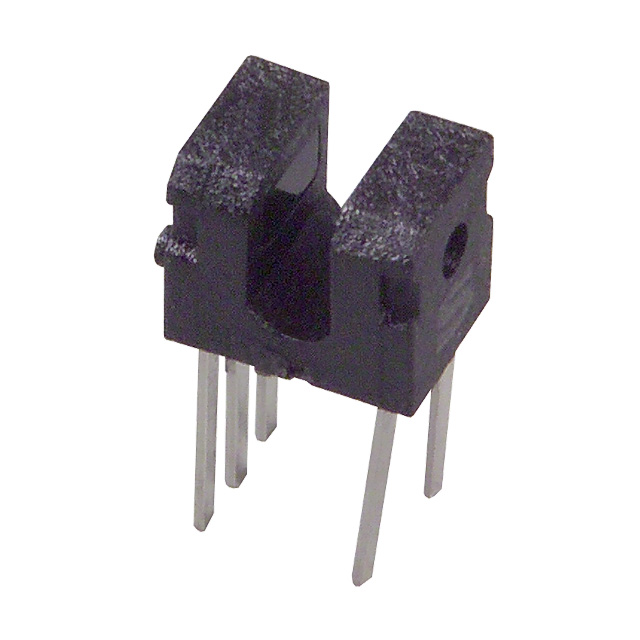

GP1A91LRJ00F is a compact-package, OPIC output, transmissive photointerrupter, with opposing emitter and detector in a molding that provides non-contact sensing. The compact package series is a result of unique technology combing transfer and injection molding.

GP1A91LRJ00F has 2 positioning bosses on the detector side, and pull-up resistor included in the deviceʼs output.

Parameters:

Technical/Catalog Information	GP1A91LRJ00F
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Sensing Distance	0.047" (1.2mm)
Sensing Method	Transmissive
Output Configuration	NPN - Open Collector
Mounting Type	Through Hole
Current - Supply	700A
Voltage - Supply	1.4 V ~ 7 V
Package / Case	PCB Mount
Features	OPIC? Configuration
Response Time	0.6s , 0.2s <!--0.2us-->
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
