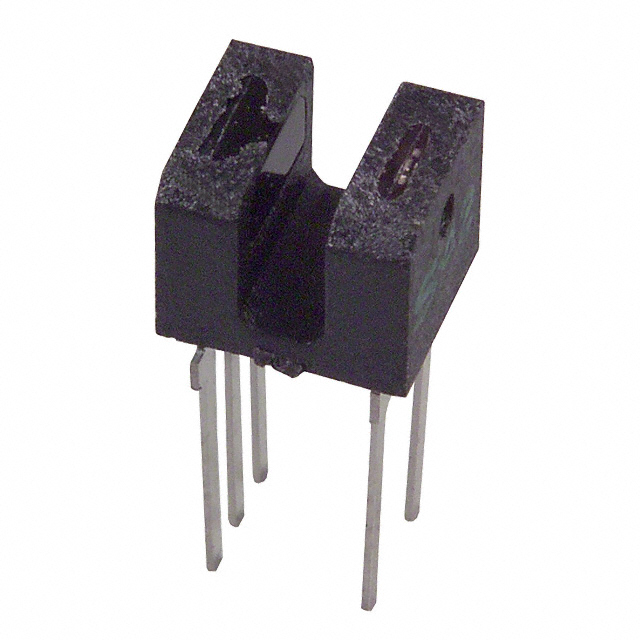

GP1S39

Series: -
Sensing Method: Transmissive
Output Configuration: Phototransistor
Current - Collector (Ic) (Max): 20mA
Mounting Type: Through Hole
Package / Case: PCB Mount
Current - DC Forward (If): 50mA
Packaging: Bulk
Voltage - Collector Emitter Breakdown (Max): 35V
Response Time: 50µs, 50µs
Manufacturer: Sharp Microelectronics
Sensing Distance: 0.059" (1.5mm)


Features:

·Ultra-compact package
·PWB mounting type
·Double-phase phototransistor output type for detecting of rotation direction and count
·Wide gap between light emitter and detector: 1.5mm
·Slit width: 0.8mm
·Detecting pitch: 0.6mm


Application

·Mouses
·Cameras



Specifications

Parameter		Symbol	Rating	Unit
Input	Forward current	IF	50	mA
	Reverse voltage	VR	6	V
	Power dissipation	P	75	mW
Output	Collector-emitter voltage	E1CO	35	V
		E2CO
	Emitter-collector voltage	VCE1O	6	V
		VCE2O
	Collector current	IC	20	mA
	Collector power dissipation	PC	75	mW
Total power dissipation		P tot	100	mW
Operating temperature		Topr	- 25 to + 85	°C
Storage temperature		Tstg	- 40 to + 100	°C
*1Soldering temperature		Tsol	260	°C

*1 For 5 seconds
