Part Number: GP2015

MFG: 600

Description: The GP2015 is a small format RF Front-end for Global Positioning System (GPS) receivers. Equivalent in performance to t...

GP2015 General Description

The GP2015 is a small format RF Front-end for Global Positioning System (GPS) receivers. Equivalent in performance to the GP2010 but in a TQFP package, this product is suited for size-critical applications as the RF area can be reduced by a factor of two to three using miniature surface mount passive components The GP2015 is designed to operate from either 3 or 5 Volt supplies.

The input to the device is the L1 (1575.42MHz) Coarse- Acquisition (C/A) code Global Positioning signal from an antenna (via a low-noise pre-amplifier). The output is 2-bit quantised for subsequent signal processing in the digital domain. The GP2015 contains an on-chip synthesiser, mixers, AGC and a quantiser which provides Sign and Magnitude digital outputs. A minimum of external components is required to make a complete GPS front-end.

The device has been designed to operate with the GP2021 12-channel Global Positioning Correlator, and DW9255 SAW filter, both also available from Mitel Semiconductor.

GP2015 Maximum Ratings

Max. Supply Voltage ......................................................7V
Max. RF Input .......................................................+15dBm
Max. voltage on any pin ...........................V_CC/V_DD + 0.5V
except LD (pin 21) and PReset (pin 9), which are 5.5V
Min. voltage on any pin ....................................V_EE - 0.5V
Storage Temperature ..........................-65°C to +150°C
Operation Junction Temperature .........-40°C to +150°C
10MHz Reference Input ...................................1.5V pk -pk

GP2015 Features

·Ultra miniature TQFP package
·Low Voltage Operation (3V - 5V)
·Low Power - 200mW typ. (3V supply)
·C/A Code Compatible
·On-chip PLL Including Complete VCO
·Triple Conversion Receiver
·48-Lead Surface Mount Quad Flat-Pack Package
·Sign and Magnitude Digital Outputs
·Compatible with GP2021 CMOS Correlator

GP2015 Typical Application

·C/A Code Global Positioning by Satellite Receivers
·Time Standards
·Navigation
·Surveying

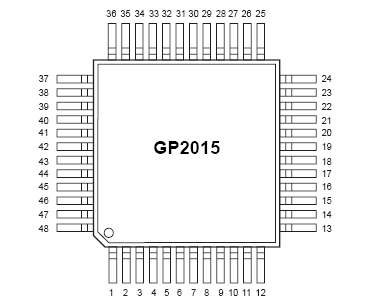

GP2015 Connection Diagram

GP2015 datasheet

GP2015
