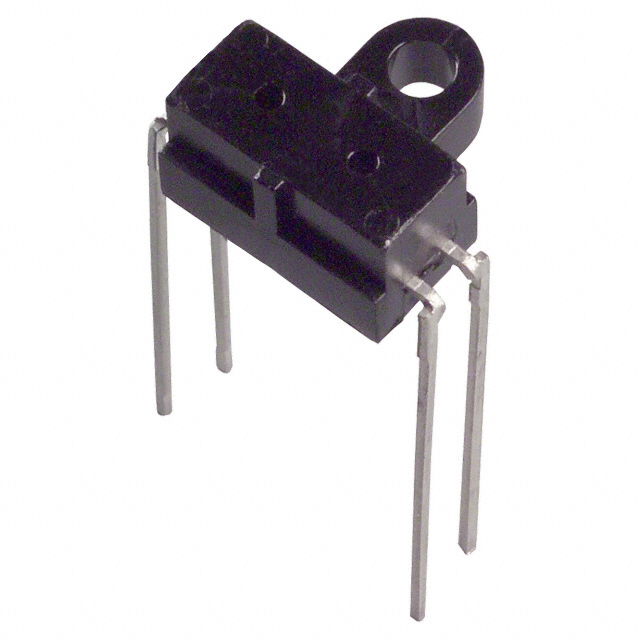

GP2L20R

Series: -
Sensing Method: Reflective
Current - DC Forward (If): 50mA
Mounting Type: Through Hole
Package / Case: PCB Mount
Packaging: Bulk
Current - Collector (Ic) (Max): 20mA
Voltage - Collector Emitter Breakdown (Max): 35V
Output Type: Photodarlington
Manufacturer: Sharp Microelectronics
Sensing Distance: 0.512" (13mm)
Response Time: 80µs, 70µs


Features:

·Correspond to DAT prism system
·Compact and thin


Application

·Digital audio tape recorder


Specifications

Parameter		Symbol	Rating	Unit
Input	Forward current	IF	50	mA
	*1 Peak forward current	IFM	1	A
	Reverse voltage	VR	6	V
	Power dissipation	P	75	mW
Output	Collector-emitter voltage	VCEO	35	V
	Emitter-collector voltage	VECO	6	V
	Collector current	IC	20	mA
	Collector power dissipation	PC	75	mW
Operating temperature		Topr	- 25 to + 85	°C
Storage temperature		Tstg	- 40 to + 100	°C
*2 Soldering temperature		Tsol	260	°C

*1 Pulse width<=100 s, duty ratio= 0.01
*2 For 5 seconds


Parameters:

Technical/Catalog Information	GP2L20R
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Sensing Distance	0.512" (13mm)
Sensing Method	Reflective
Output Type	Photodarlington
Voltage - Collector Emitter Breakdown (Max)	35V
Current - Collector (Ic) (Max)	20mA
Current - DC Forward (If)	50mA
Response Time	80s , 70s <!--70us-->
Operating Temperature	-25°C ~ 85°C
Features	Corresponds to DAT Prism System
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
RoHS Status	RoHS Non-Compliant
Other Names	GP2L20R GP2L20R 425 1089 5 ND 42510895ND 425-1089-5
