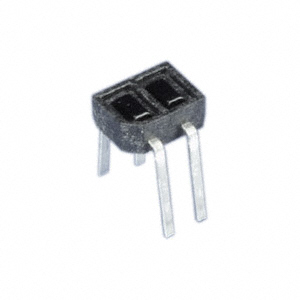

GP2L24

Series: -
Sensing Method: Reflective
Current - Collector (Ic) (Max): 50mA
Current - DC Forward (If): 50mA
Mounting Type: Through Hole
Package / Case: PCB Mount
Packaging: Bulk
Voltage - Collector Emitter Breakdown (Max): 35V
Output Type: Photodarlington
Manufacturer: Sharp Microelectronics
Response Time: 80µs, 70µs
Sensing Distance: 0.031" (0.8mm)


Features:

`Compact and thin
GP2L09: Compact DIP, long lead type
GP2L24: Compact DIP type
GP2L26: Flat lead type
`Optimum detection distance: 0.6 to 0.8mm
`High sensitivity ( I<sub>C</sub>: MIN. 0.5mA at I <sub>F</sub>= 4mA)
` Visible light cut-off type


Application

·Cassette tape recorders, VCRs
·Floppy disk drives
·Various microcomputerized control equipment


Specifications

Parameter		Symbol	Rating	Unit
Input	Forward current	IF	50	mA
	Reverse voltage	VR	6	V
	Power dissipation	P	75	mW
Output	Collector-emitter voltage	VCEO	35	V
	Emitter-collector voltage	VECO	6	V
	Collector current	IC	20	mA
	Collector power dissipation	PC	75	mW
Total power dissipation		Ptot	100	mW
Operating temperature		Topr	- 25 to + 85	°C
Storage temperature		Tstg	- 40 to + 100	°C
*1 Soldering temperature		Tsol	260	°C

*1 Within 5 seconds ( Soldering areas for each model are shown below. )



Parameters:

Technical/Catalog Information	GP2L24
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Sensing Distance	0.031" (0.8mm)
Sensing Method	Reflective
Output Type	Photodarlington
Voltage - Collector Emitter Breakdown (Max)	35V
Current - Collector (Ic) (Max)	50mA
Current - DC Forward (If)	50mA
Response Time	80s , 70s <!--70us-->
Operating Temperature	-25°C ~ 85°C
Features	High Sensitivity
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	GP2L24 GP2L24 425 1091 5 ND 42510915ND 425-1091-5
