GP2W2002YK

Features:

·Meets IrDA Control (for Peripheral Type 2)
·Wide Viewing Angle ([Min.] 1.5 m @ +/-40°) Wireless Communication at 75kbps data rate
·Low Power Operation - at 3.3V
·Built-in Envelope Detector
·RESET Function to Recover the Receiver Sensitivity
·Optimized Interface to Sharp Peripheral Engine, an embedded communication controller for IrDA Control.

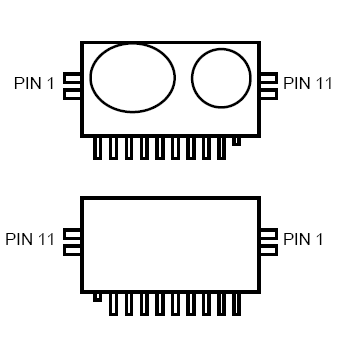

Pinout




Specifications

Parameter	Symbol	Min.	Max.	Units	Conditions
Supply Voltage	VCC	0	6.0	V
Operating Temperature	TOP	-10	70
Storage Temperature	TST	-20	85
Average Forward LED Current	IFD (DC)	-	60	mA
Peak Forward LED Current	IFM	-	600	mA	*1
Transmitter Data Input Current	ITXD	-	5.0	mA
Receiver Data Output Voltage	VO	-	VCC	V
Soldering Temperature	TSOL	-	260		*2 , For 5s

(NOTES)
1. The derating curve of peak forward current vs. ambient temperature is shown in section 11, figure 11.1.
2. The soldering should be done at the distance from 1.3mm from the resin edge of the transceiver module.


Description

The Sharp IrDA Control Infrared Transceiver GP2W2002YK provides the wireless interface between logic and IR signals for through-air, serial, half-duplex IrDA Control data links and is designed to satisfy the IrDA Control Physical Layer Specifications for Peripheral Type 2.

The GP2W2002YK is a low power operatable integrated infrared transceiver that contains an IRLED, a LED driver circuit, a PIN photodiode, an excellent sensitivity receiver, and an envelope detector. The transceiver GP2W2002YK also contains some additional functions, such as shut down and sensitivity recovery for low current consumption and longer communication distance.
