General Description
GPS140HR General Description
The GPS140HR is designed on a PC/104 form factor. An easy mechanical interface to both PC/104 and RTD IDAN systems can be achieved. Stack your GPS140HR directly on a PC/104 compatible CPU module using the onboard mounting holes and standoffs.
The GPS receiver antenna interface is an OSX type miniature coaxial connector. Connect your antenna directly to the GPS140HR antenna connector, or use a short cable inside your enclosure to connect to a feed through connector to allow connection of the antenna to the wall of your enclosure. All I/O connections are made using header type terminals.
GPS140HR Features
• Direct connection to GPS Receiver module
• True NMEA-0183 data protocol version 2.01, also binary output
• 12-satellite parallel tracking GPS receiver with fast response
• Differential GPS support with external correction source
• Onboard UART with flexible I/O and IRQ selection
• Supports passive and active antennas with +5V or +12V supply
• OSX/MSX antenna connector
• 1 PPS time mark output as well as 10KHz clock
• Backup battery to store GPS receiver data while powered off
• Status LED indicating 1 PPS time mark and GPS activity
• Wide operating temperature range 40 to + 85C
• Fully PC/104 compliant
• True NMEA-0183 data protocol version 2.01, also binary output
• 12-satellite parallel tracking GPS receiver with fast response
• Differential GPS support with external correction source
• Onboard UART with flexible I/O and IRQ selection
• Supports passive and active antennas with +5V or +12V supply
• OSX/MSX antenna connector
• 1 PPS time mark output as well as 10KHz clock
• Backup battery to store GPS receiver data while powered off
• Status LED indicating 1 PPS time mark and GPS activity
• Wide operating temperature range 40 to + 85C
• Fully PC/104 compliant

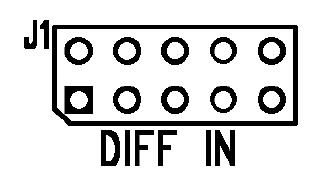

GPS140HR Connection Diagram
