Purchase GS-BT2416C2.AT1, In-stock GS-BT2416C2.AT1 From SeekIC.

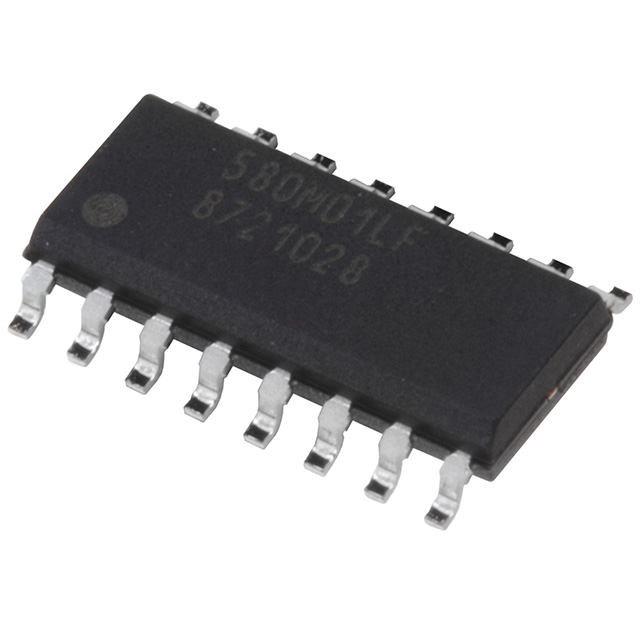

Part Number: GS-BT2416C2.AT1
Description: ST Bluetooth Modules are highly integrated for easy implementation in embedded applications. Class 2 m...
- Table of contents:
GS-BT2416C2.AT1
-
Suppliers
DataSheet
General Description
GS-BT2416C2.AT1 General Description
ST Bluetooth Modules are highly integrated for easy implementation in embedded applications. Class 2 modules enable wireless communication with other Bluetooth enabled devices up to 10 m away. The GS-BT2416C2.AT1 integrates on a unique FR4 PCB support: BT 1.2 radio and baseband, memory, 32 KHz and 13 MHz oscillator as well Vreg. The Module embeds a complete lower and upper Bluetooth stack up to the application support layers including the Generic Port Profile (GAP) and Serial Port Profile (SPP), as well the AT Command Interpreter. The antenna has not been included in order to grant a degree of freedom to the user in selecting the most suitable design and placement between external and integrated antenna that could be SMA aerial or a low cost antenna trace designed on PCB. For more details pleas refer to
GS-BT2416C2DBAT1 Application Note.
The GS-BT2416C2.AT1 is the SPP with AT command module of the GS-BT2416C2.xx series.
GS-BT2416C2.AT1 is BQB qualified.
Conformance testing through Bluetooth qualification program enables a fast time to market after system integration by ensuring a high degree of compliance and interoperability.
GS-BT2416C2.AT1 Maximum Ratings
| Symbol | Parameter | Values | Unit | |
| Min | Max | |||
| VDD | Module supply voltage | 4 | V | |
| VIN | Input voltage on any digital pin | Vss1-0.5 | Vdd+0.3 | V |
| Tstg | Storage temperature | -40 | +85 | |
| Tsold | Soldering temperature | 240 | ||
GS-BT2416C2.AT1 Features
Bluetooth specification V.1.2 compliant
Transmission rate up to 721 Kbps
Output power class 2 ( 0 dBm typical)
Working distance up to 10 meters
ACL & SCO links
AFH interferance resistance
Supports USB (1.1) /UART/PCM (Pulse Code
Modulation)/SPI/ I²C interfaces
Optimized link manager and control
Support wireless LAN coexistence in
collocated scenario
Integrated 4Mbit flash, 64Kbytes RAM,
4KBytes ROM
3.3V single supply voltage
Hardware based UART flow control
Transmission rate up to 721 Kbps
Output power class 2 ( 0 dBm typical)
Working distance up to 10 meters
ACL & SCO links
AFH interferance resistance
Supports USB (1.1) /UART/PCM (Pulse Code
Modulation)/SPI/ I²C interfaces
Optimized link manager and control
Support wireless LAN coexistence in
collocated scenario
Integrated 4Mbit flash, 64Kbytes RAM,
4KBytes ROM
3.3V single supply voltage
Hardware based UART flow control
GS-BT2416C2.AT1 Typical Application
Serial cable replacement
Industrial control
Laptops
POS terminals
Data acquisition equipment
Internet access points
Machine Control
Sensor monitoring
Robotic and bionic control
Security control
Patient monitoring
Audio gateway applications
Hands-free sets
Wireless printers
Cordless terminals
Laptops, PCs and accessories
Hand held devices and accessories
HID devices (keyboard, mouse, joystick, game
controller...)
Industrial control
Laptops
POS terminals
Data acquisition equipment
Internet access points
Machine Control
Sensor monitoring
Robotic and bionic control
Security control
Patient monitoring
Audio gateway applications
Hands-free sets
Wireless printers
Cordless terminals
Laptops, PCs and accessories
Hand held devices and accessories
HID devices (keyboard, mouse, joystick, game
controller...)
