Features:

• SMPTE 292M compliant
• NRZ(I) encoding
• SMPTE 292M scrambler with BYPASS option
• selectable TRS insertion
• selectable line number insertion
• selectable line based CRC insertion
• selectable active picture illegal code re-mapping
• 20 bit 3.3V CMOS compatible input data bus
• optimized output interface to GS1522
• Pb-free and Green
• single +3.3V power supply
• 5V tolerant I/O





Application

• SMPTE 292M Serial Digital Interfaces




Pinout

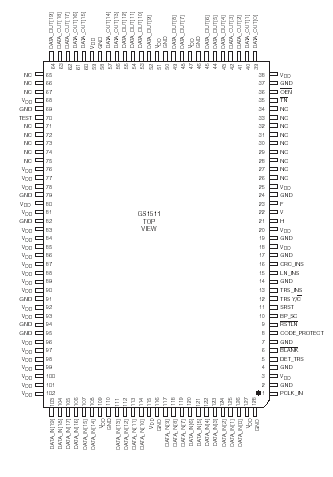

  Connection Diagram




Specifications

PARAMETER VALUE
Supply Voltage
Input Voltage Range (any input)
Operating Temperature Range
Storage Temperature Range
Lead Temperature (soldering 10 seconds)
-0.5V to +4.6V
-0.5V < VIN < 5.5V
0 TA 70
-40 TS 125
260





Description

The GS1511 HDTV Serial Digital Formatter formats the HDTV Luma and Chroma data according to SMPTE 292M prior to serialization by the GS1522 HDTV Serializer. The GS1511 optionally inserts TRS and line number signals based on externally supplied H, V and F signals. The device also allows the insertion of CRCs based on TRS signals embedded in the input data streams, should the user choose not to supply external HVF signals.

Following the insertion of TRS, Line Number, and CRC, GS1511 protected words of 000-003 and 3FC to 3FF occurring during the active video period are optionally re-mapped to 004 and 3FB respectively. Prior to exiting the device SMPTE 292M compliant NRZ(I) encoding and scrambling may be performed on the data stream.
