GS1540

Features:

• SMPTE 292M compliant
• 1.485 and 1.485/1.001Gb/s operation
• integrated adjustment-free reclocker
• 1:20 serial to parallel conversion
• selectable reclocked serial output
• reclocker BYPASS capability
• LOCK detect
• input jitter indicator (IJI)
• 20 bit output
• 74.25MHz or 74.25/1.001MHz clock output
• single +5.0V power supply
• minimal component count for HD SDI receive solutions




Application

SMPTE 292M Serial Digital Interfaces for Production Switchers, Master Control Switchers, NLE's, and VTR's.

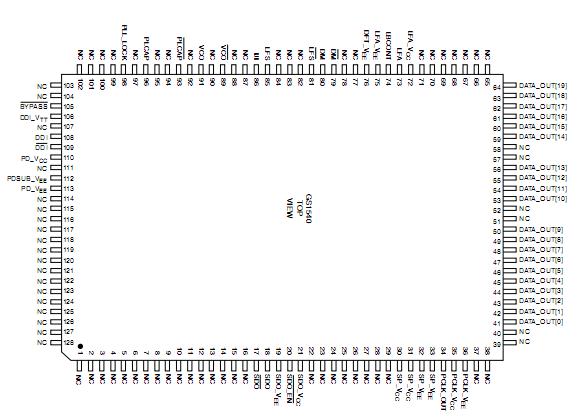

Pinout






Specifications

PARAMETER	VALUE
Supply Voltage(VS)	5.5V
Input Voltage Range (any input)	VEE 0.5 < VIN < VCC+ 0.5
Operating Temperature Range	0°C TA 70°C
Storage Temperature Range	-40°C TS 150°C
Power Dissipation (VCC = 5.25V)	2.1W
Lead Temperature (soldering, 10 sec)	260°C
Input ESD Voltage	TBD
Junction Temperature	125°C

Description


The GS1540 is a high performance integrated Receiver designed for HDTV component signals, conforming to the SMPTE 292M standard. The GS1540 includes adjustment free clock and data recovery, and 1:20 serial to parallel conversion.

The Clock and Data Recovery stage of GS1540 was designed to automatically recover the embedded clock signal and retime the data from SMPTE 292M compliant digital video signals. There is also a selectable reclocked serial data buffer output and the ability to bypass the reclocker stage.

A unique feature, Input Jitter Indicator (IJI), is included for robust system design. This feature is used to indicate excessive input jitter before the chip mutes the outputs.

The GS1540 to Parallel conversion stage provides 1:20 S/P conversion.

The GS1540 uses the GO1515 external VCO connected to the internal PLL circuitry to achieve ultra low noise PLL performance.
