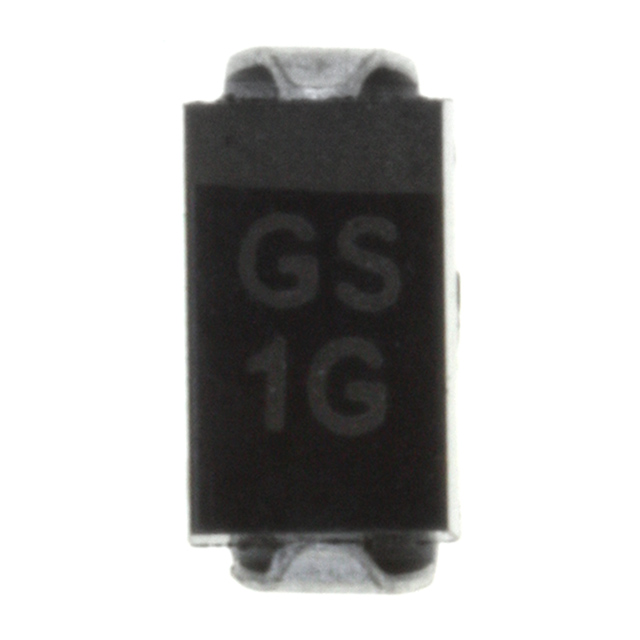

Purchase GS1GW, In-stock GS1GW From SeekIC.
MFG:PANJIT Package Cooled:DO-214AC(SMA) D/C:07+
- Table of contents:
GS1GW
-
Suppliers
DataSheet
General Description
GS1GW Maximum Ratings
| RATINGS |
SYMBOL |
GS1AW | GS1BW | GS1DW | GS1GW | GS1JW | GS1KW | GS1MW |
UNITS |
| Maximum Recurrent Peak Reverse Voltage |
VRRM |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
| Maximum RMS Volts |
VRMS |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
V |
| Maximum DC Blocking Voltage |
VDC |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
| Maximum Average Forward Rectified Current @TA =50 |
IF(AV) |
1.0 |
A | ||||||
| Peak Forward Surge Current : 8.3ms si ngle half si ne-wave superimposed on rated load(JEDEC method) |
IFSM |
30 |
A | ||||||
| Maximum Instantaneous At1.0A DC |
VF |
1.1 |
V | ||||||
| Maximum DC Reverse Current @TA=25 Rated DC Blocki ng Voltage@ TA=125 |
IR |
5.0 50 |
uA | ||||||
| Typi cal Juncti on capaci tance (Note 1) |
CJ |
12 |
pF | ||||||
| Typi cal Thermal Resi stance(Note 2) |
RJA |
30 |
/ W | ||||||
| Operati ng and Storage Temperature Range |
TJ ,T STG |
-55 TO +150 |
| ||||||
GS1GW Features
• For surface mounted applications
• Low profile package
• Built-in strain relief
• Easy pick and place
• Plastic package has Underwriters Laboratory Flammability Classification 94V-O
• Low Forward Drop
• High temperature soldering : 260 /10 seconds at terminals
• Plastic Silicon Passivated
• In compliance with EU RoHS 2002/95/EC directives
• Low profile package
• Built-in strain relief
• Easy pick and place
• Plastic package has Underwriters Laboratory Flammability Classification 94V-O
• Low Forward Drop
• High temperature soldering : 260 /10 seconds at terminals
• Plastic Silicon Passivated
• In compliance with EU RoHS 2002/95/EC directives
