Part Number: GS1T70-D540/2



MFG: ST

Package Cooled: 04+



Description: The GS1T70-D540/2 converter has been designed for the "U" interface of an ISDN-NTBA (Network Termination Basic Acces...


Urgent Purchase

GS1T70-D540/2 General Description


The GS1T70-D540/2 converter has been designed for the "U" interface of an ISDN-NTBA (Network Termination Basic Access) system with either 4B3T or 2B1Q standard trasmission. Two outputs, 5V/72mA and 40V/12mA are supplied.

The converter offers short-circuit protection (short-circuit on 40V output doesn't affect 5V output and the input power never  exceeds the limits of the specification), input  either voltage polarity, 80% minimum efficiency at maximum load, input and output filtering to meet very stringent noise requirements.

When the input voltage is below 18V, the converter offers a very high input impedance and a maximum quiescent current of 10µA according to the standard ETR 080

GS1T70-D540/2 Features

Wide operating line termination voltage
Positive or negative input voltage polarity
Input and output filtering
Short-circuit protection on both outputs
Input power during shortcircuit within specification
Minimum current drain during stand-by condition:10µA for Vi<18V
Input-Output2 insulation voltage: 3000VRMS for 60 seconds
Output1-Output2 insulation voltage: 3000VRMS for 60 seconds
Mechanical dimensions (L x W x H): 50.8 mm x 50.8 mm x 18 mm (2" x 2" x 0.71")

GS1T70-D540/2 datasheet

GS1T70-D540/2
PDF/DataSheet Download

Find GS1T70-D540/2 Suppliers

  • ·GS100T300
  • STMICROELECTRONICS [STMicroelectronics]
  • 70W/100W DC-DC CONVERTERS FAMILY
  • 93441 KB
  • GS100T300 Datasheet Download
  • ·GS100T300-12
  • STMICROELECTRONICS [STMicroelectronics]
  • 70W/100W DC-DC CONVERTERS FAMILY
  • 93441 KB
  • GS100T300-12 Datasheet Download
  • ·GS100T300-15
  • STMICROELECTRONICS [STMicroelectronics]
  • 70W/100W DC-DC CONVERTERS FAMILY
  • 93441 KB
  • GS100T300-15 Datasheet Download
  • ·GS100T300-24
  • STMICROELECTRONICS [STMicroelectronics]
  • 70W/100W DC-DC CONVERTERS FAMILY
  • 93441 KB
  • GS100T300-24 Datasheet Download
  • ·GS100T300-48
  • STMICROELECTRONICS [STMicroelectronics]
  • 70W/100W DC-DC CONVERTERS FAMILY
  • 93441 KB
  • GS100T300-48 Datasheet Download
  • ·GS100T300-5
  • STMICROELECTRONICS [STMicroelectronics]
  • 70W/100W DC-DC CONVERTERS FAMILY
  • 93441 KB
  • GS100T300-5 Datasheet Download
  • ·GS1084
  • VISAY [Vishay Siliconix]
  • 5A Low Dropout Positive Adjustable Regulator
  • 58438 KB
  • GS1084 Datasheet Download
  • ·GS1084CE1.8
  • VISAY [Vishay Siliconix]
  • 5A Low Dropout Positive Adjustable Regulator
  • 58438 KB
  • GS1084CE1.8 Datasheet Download

Related Part Number

GS1T70-D540/2 Relative Products

  • GS1T70-D540

    GS1T70-D540

    The GS1T70-D540/1 converter has been designed for the "U" interface of an ISDN-NTBA (Network Termination Basic Access) system with either 4B3T or 2B1Q standard trasmission.GS1T70-D540/1 meets the requirements of the following specifications:EN 60950CCITT I.4...

  • GS1T5-5D15

    GS1T5-5D15

    The GS1T5-5D15 is a 0.6WDC-DC converter designedto providean isolated5V/20mA, +15V/15mA and 15V/15mApower source.The GS1T5-5D15 operates from a 5V input source and offers 2500VDC isolation.

  • GS1T5-5

    GS1T5-5

    The GS1T5-5 is a 1W DC-DC converter designed to provide an isolated 5V/250mA power source.The GS1T5-5 operates from a 5V input source and it offers 2500VDC isolation.

  • GS1MW

    GS1MW

  • GS1M-TP

    GS1M-TP

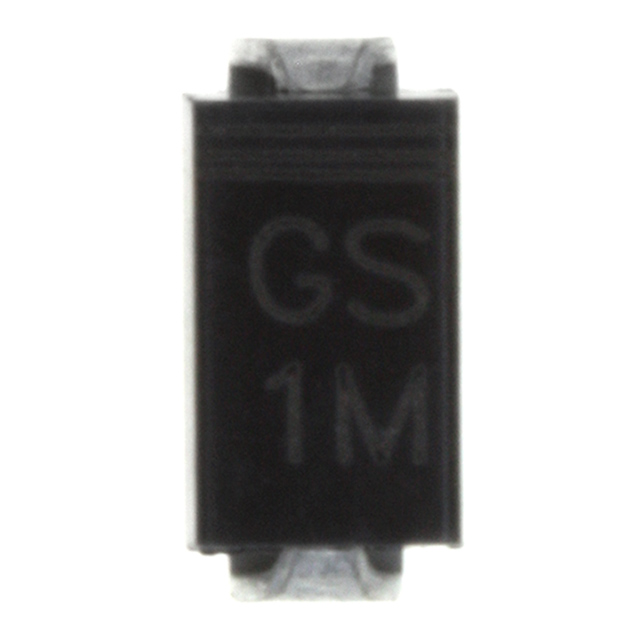

    DIODE STD REC 1A 1000V DO214AC
