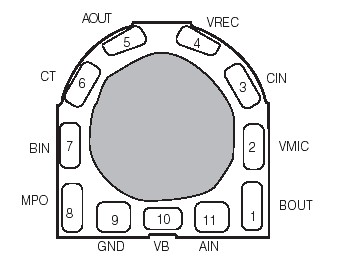

Features: • Gennum's GL504 preamp• mounts on back of Microtronic PJ88S VC Socket• low external parts count• designed to drive Class D integrated receivers• adjustable peak clipper• low current drain (150 mA) typical• low noise and distortionPinoutSpecifica...
GS3015: Features: • Gennum's GL504 preamp• mounts on back of Microtronic PJ88S VC Socket• low external parts count• designed to drive Class D integrated receivers• adjustable p...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Very high output power (300W)High efficiency (80%min.)Parallel operation with current sh...
PARAMETER |
VALUE/UNITS |
Supply Voltage |
3 V DC |
Power Dissipation |
25 mW |
Operating Temperature Range |
-10 to +40 |
Storage Temperature Range |
-20 to +70 |
The GS3015 incorporates Gennum's GL504 preamp, three of the required capacitors and a mid supply referencing 48K resistor. All that is required for a fully functional hearing aid system is the addition of a microphone, receiver, volume control, interstage coupling capacitor and an MPO adjusting potentiometer.
The GS3015 has been designed to mount on the back of the Microtronics PJ88S Socket Volume Control. GS3015 translates to a saving in space within the hearing instrument, as the circuitry mounts directly beneath the volume control. If the VC requires replacing, it is a simple procedure to remove the defective unit from the socket and install a new device. This does not disturb the electronic circuitry.
The major advantage of the GL504 over other preamplifiers is the electronic MPO adjustment. Since conventional MPO is not possible in a class D receiver, Gennum GS3015 provides it in the preamp.
