Product Details

Description



Features:

• Fast access time: 8, 10, 12, 15ns
• CMOS low power operation: 150/125/110/90 mA at min. cycle time.
• Single 3.3V ± 0.3V power supply
• All inputs and outputs are TTL compatible
• Fully static operation
• Industrial Temperature Option: -40° to 85°C
• Package line up
   J: 400mil, 36 pin SOJ package
   TP: 400mil, 44 pin TSOP Type II package


Pinout

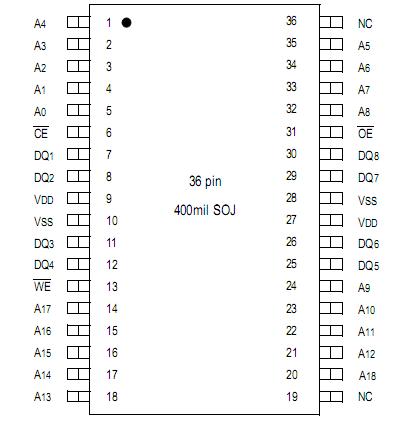

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Supply Voltage VDD 0.5 to +4.6 V
Input Voltage VIN 0.5 to VDD +0.5
( 4.6 V max.)		 V
Output Voltage VOUT 0.5 to VDD +0.5
( 4.6 V max.)		 V
Allowable power dissipation PD 0.7 W
Storage temperature TSTG 55 to 150



Description

The GS74108 is a high speed CMOS static RAM organized as 524,288-words by 8-bits. Static design eliminates the need for external clocks or timing strobes. Operating on a single 3.3V power supply and all inputs and outputs are TTL compatible. The GS74108 is available in 400 mil SOJ and 400 mil TSOP Type-II packages.
