GS75232

Features: Meets standard EIA-232-D (Revision of RS-232-C) Drivers- Current Limited Output : 10 mA Typical- Power-off Output Impedance : 300 W Min- Slew Rate Control by Load Capacitor- Flexible Supply Voltage Range- Input Compatible with Most TTL and DTL CircuitsReceivers- Input Resistance : 3 kW t...

product image

GS75232 Picture
See larger image
SeekIC No. : 004355714 Detail

GS75232: Features: Meets standard EIA-232-D (Revision of RS-232-C) Drivers- Current Limited Output : 10 mA Typical- Power-off Output Impedance : 300 W Min- Slew Rate Control by Load Capacitor- Flexible Suppl...

GS75232 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GS75232
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Meets standard EIA-232-D (Revision of RS-232-C)
Drivers
- Current Limited Output : 10 mA Typical
- Power-off Output Impedance : 300 W Min
- Slew Rate Control by Load Capacitor
- Flexible Supply Voltage Range
- Input Compatible with Most TTL and DTL Circuits
 Receivers
- Input Resistance : 3 kW to 7 kW
- Input Signal Range : ± 30 V
- Built-in Input Hysteresis (Double Threshold)


Pinout

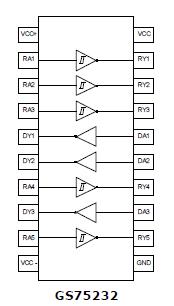

Connection Diagram


Specifications

Symbol Parameter
Rating
Unit
VCC+ Supply Voltage
15
V
VCC- Supply Voltage
-15
V
VCC Supply Voltage
10
V
VI (Driver) Input Voltage
-15 to +7
V
VI (Reciver) Input Voltage
± 30
V
VO (Driver) Output Voltage
-15 to +15
V
PT Continuous Power Dissipation (Below 25 )
1.0
W
TSTG Storage Temperature
-65 to +175
Top Operating Temperature
0 to +75



Description

The GS75232 are monolithic device containing 3 independent drives and 5 receivers. These are designed to interface between date terminal equipment and date communication equipment as designed by EIA-232-D.
