GS880Z36BT

Features:

• NBT (No Bus Turn Around) functionality allows zero wait read-write-read bus utilization; Fully pin-compatible with both pipelined and flow through NtRAM™, NoBL™ and ZBT™ SRAMs
• 2.5 V or 3.3 V +10%/10% core power supply
• 2.5 V or 3.3 V I/O supply
• User-configurable Pipeline and Flow Through mode
• LBO pin for Linear or Interleave Burst mode
• Pin compatible with 2M, 4M, and 18M devices
• Byte write operation (9-bit Bytes)
• 3 chip enable signals for easy depth expansion
• ZZ Pin for automatic power-down
• JEDEC-standard 100-lead TQFP package
• Pb-Free 100-lead TQFP package available

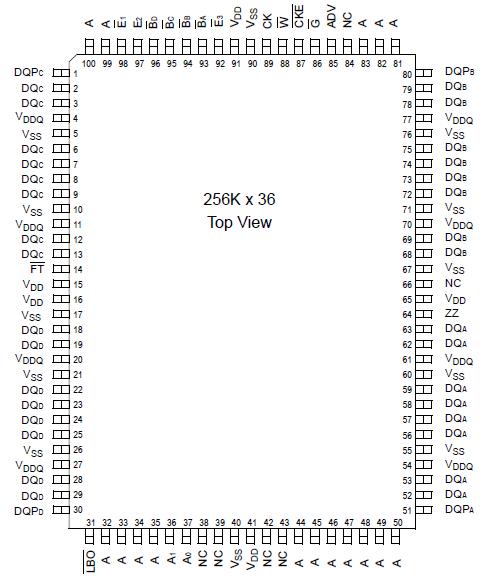

Pinout

Specifications

Symbol	Description	Value	Unit
VDD	Voltage on VDD Pins	0.5 to 4.6	V
VDDQ	Voltage in VDDQPins	0.5 to 4.6	V
VI/O	Voltage on I/O Pins	0.5 to VDDQ+0.5 ( 4.6 V max.)	V
VIN	Voltage on Other Input Pins	0.5 to VDD +0.5 ( 4.6 V max.)	V
IIN	Input Current on Any Pin	+/20	mA
IOUT	Output Current on Any I/O Pin	+/20	mA
PD	Package Power Dissipation	1.5	W
TSTG	Storage Temperature	55 to 125
TBIAS	Temperature Under Bias	55 to 125

Note:
Permanent damage to the device may occur if the Absolute Maximum Ratings are exceeded. Operation should be restricted to Recommended Operating Conditions. Exposure to conditions exceeding the Absolute Maximum Ratings, for an extended period of time, may affect reliability of this component.


Description

The GS880Z18/36BT is a 9Mbit Synchronous Static SRAM. GSI's NBT SRAMs, like ZBT, NtRAM, NoBL or other pipelined read/double late write or flow through read/single late write SRAMs, allow utilization of all available bus bandwidth by eliminating the need to insert deselect cycles when the GS880Z18/36BT is switched from read to write cycles.

Because GS880Z18/36BT is a synchronous device, address, data inputs, and read/ write control inputs are captured on the rising edge of the input clock. Burst order control (LBO) must be tied to a power rail for proper operation. Asynchronous inputs of GS880Z18/36BT include the Sleep mode enable (ZZ) and Output Enable. Output Enable can be used to override the synchronous control of the output drivers and turn the RAM's output drivers off at any time. Write cycles are internally self-timed and initiated by the rising edge of the clock input. GS880Z18/36BT feature eliminates complex offchip write pulse generation required by asynchronous SRAMs and simplifies input signal timing.

The GS880Z18/36BT may be configured by the user to operate in Pipeline or Flow Through mode. Operating as a pipelined synchronous device, meaning that in addition to the rising edge triggered registers that capture input signals, the GS880Z18/36BT incorporates a rising-edge-triggered output register. For read cycles, pipelined SRAM output data is temporarily stored by the edge triggered output register during the access cycle and then released to the output drivers at the next rising edge of clock.

The GS880Z18/36BT is implemented with GSI's high performance CMOS technology and is available in a JEDECStandard 100-pin TQFP package.
