GT4123B General Description


The GT4123B is a monolithic dual-channel video multiplier for use in a wide range of applications including broadcast and multimedia.

Featuring two wideband video inputs and a single control input, the GT4123B achieves broadcast quality mixing of two video input signals to a single output by implementing the function:

GT4123B Maximum Ratings

PARAMETER                                                    VALUE/UNITS
Supply Voltage ......................................................±13.5 V
Operating Temperature Range .................0 TA 70
Storage Temperature Range ................-65 TS 150
Lead Temperature (soldering, 10 seconds).............. 260
Video Input Voltage ....................................................±5 V
Control Input Voltage .................................................±5 V
Video Input Differential Voltage ..................................±5 V

GT4123B Features

·two-quadrant video multiplication
·operation from ±4.5 V to ±13.2 V supply voltages
·20 MHz ±0.1 dB video & control channel bandwidth
·ultra low differential gain & differential phase
·convenient 8 pin package
·Pb-free and Green

GT4123B Typical Application

• Multimedia Graphics Overlay
• Production Switchers
• Linear Keyers

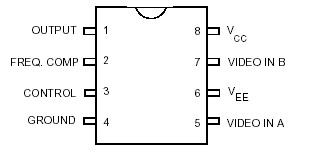

GT4123B Connection Diagram

GT4123B Connection Diagram
