Part Number: GT9128
Description: The GT9128A is a memory mapped segment-type LCD driver which has 128 patterns . It can easily interface to microp...
- Table of contents:
GT9128
-
Suppliers
DataSheet
General Description
GT9128 General Description
The GT9128A is a memory mapped segment-type LCD driver which has 128 patterns . It
can easily interface to microprocessor or microcontroller via a serial interface like accessing the
serial EEPROM. There are only three or four lines required for communication with the host
CPU.
GT9128 Maximum Ratings
| Symbo | Parameter | Rating | Unit |
| VDD | Power Supply Voltage | -0.3~ 5.5 | V |
| VLCD | LCD Supply Voltage | -0.3~VDD | V |
| TIN | Input voltage | VSS- 0.3 ~VDD +0.3 |
V |
| TA | Operating Temperature | -20~75 | oC |
| TSTG | Storage Temperature | -55 ~ +125 | oC |
GT9128 Features
1) Operates on 2.4V to 5.25V
2) Lower power CMOS process.
3) Compact package. ( 7.0x7.0 mm2square )
4) On chip built-in 256kHz oscillator
5) Serial EEPROM like access interface
6) Up to 4 common and 32 segment output.
7) Support 1/2,1/3, or 1/4 duty display.
8) Support 1/2 ,1/3 bias for LCD power display.
9) Programmable timer output for external control.
10) Selectable 2kHz or 4kHz base frequency output.
11) Power down mode to reduce power consumption.
2) Lower power CMOS process.
3) Compact package. ( 7.0x7.0 mm2square )
4) On chip built-in 256kHz oscillator
5) Serial EEPROM like access interface
6) Up to 4 common and 32 segment output.
7) Support 1/2,1/3, or 1/4 duty display.
8) Support 1/2 ,1/3 bias for LCD power display.
9) Programmable timer output for external control.
10) Selectable 2kHz or 4kHz base frequency output.
11) Power down mode to reduce power consumption.
GT9128 Typical Application
Portable sets, cameras, telephones, radio, VCD players, DVD players, MP3 players, digital
recorder, home appliance and those applications using LCD display.
recorder, home appliance and those applications using LCD display.

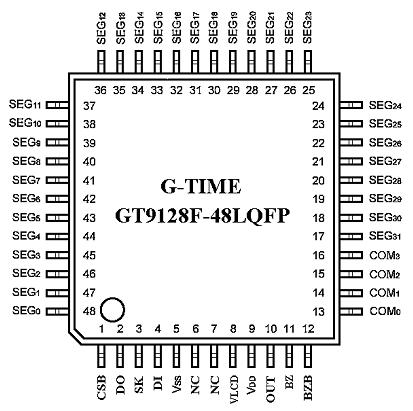

GT9128 Connection Diagram
GT9128
