Part Number: H11B815



MFG: FATRCHIL

Package Cooled: DIP/SMD

D/C: 02+

Description: The H11B815 consists of a gallium arsenide infrared emitting diode driving a silicon Darlington phototransistor in a 4-...


Urgent Purchase

H11B815 General Description


The H11B815 consists of a gallium arsenide infrared emitting diode driving a silicon Darlington phototransistor in a 4-pin dual in-line package.

H11B815 Maximum Ratings

Parameter Symbol Value Units
TOTAL DEVICE
Storage Temperature		 TSTG -55 to +150 °C
Operating Temperature TOPR -55 to +100 °C
Lead Solder Temperature TSOL 260 for 10 sec °C
Total Device Power Dissipation @ TA
= 25°C		 PD 250 mW
EMITTER
DC/Average Forward Input Current		 IF 80 mA
Reverse Input Voltage VR 6 V
Forward Current - Peak (1s pulse, 300pps) I LF(PK) 1 A
LED Power Dissipation @ TA
= 25°C		 PD 140 mW
Derate above 25°C 1.33 mW/°C
DETECTOR
Collector-Emitter Voltage		 VCEO 35 V
Emitter-Collector Voltage VECO 6 V
Continuous Collector Current LC 200 mA
Detector Power Dissipation @ TA
= 25°C		 PD 200 mW
Derate above 25°C 2.0 mW/°C

H11B815 Features

• Compact 4-pin package
• Current Transfer Ratio: 600% minimum (at IF= 1 mA)
• High isolation voltage between input and output (5300 VRMS)
• UL recognized (File # E90700

H11B815 Typical Application

• Power Supply Monitors
• Relay Contact Monitor
• Telephone/Telegraph Line Receiver
• Twisted Pair Line Receiver
• Digital Logic/Digital Logic

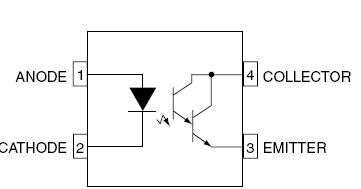

H11B815 Connection Diagram

H11B815 Connection Diagram
