Part Number: H11F3
Description: The H11F series consists of a Gallium-Aluminum-Arsenide IRED emitting diode coupled to a symmetrical b...
- Table of contents:
H11F3
-
Suppliers
DataSheet
General Description
H11F3 General Description
The H11F series consists of a Gallium-Aluminum-Arsenide IRED emitting diode coupled to a symmetrical bilateral silicon photodetector.
The detector is electrically isolated from the input and performs like an ideal isolated FET designed for distortion-free
control of low level AC and DC analog signals. The H11F series devices are mounted in dual in-line packages.
H11F3 Maximum Ratings
|
Parameters |
Symbol |
Device |
Value |
Units |
| TOTAL DEVICE Storage Temperature |
TSTG |
All |
-55 to +150 |
|
| Operating Temperature |
TOPR |
All |
-55 to +100 |
|
| Lead Solder Temperature |
TSOL |
All |
260 for 10 sec |
|
| EMITTER Continuous Forward Current |
IF |
All |
60 |
mA |
| Reverse Voltage |
VR |
All |
5 |
V |
| Forward Current - Peak (10 s pulse, 1% duty cycle) |
IF(pk) |
All |
1 |
A |
| LED Power Dissipation 25 Ambient Derate Linearly From 25 |
PD |
All |
100 |
mW |
|
1.33 |
mW/ | |||
| DETECTOR Detector Power Dissipation @ 25 Derate Linearly from 25 |
PD |
All |
300 |
mW |
|
4.0 |
mW/ | |||
| Breakdown Voltage (either polarity) |
BV4-6 |
H11F1, H11F2 |
±30 |
V |
|
H11F3 |
±15 |
V | ||
| Continuous Collector Current |
I4-6 |
All |
±100 |
mA |
H11F3 Features
As a remote variable resistor
• 100 to 300 M
• 99.9% linearity
• 15 pF shunt capacitance
• 100 G I/O isolation resistance
As an analog switch
• Extremely low offset voltage
• 60 Vpk-pk signal capability
• No charge injection or latch-up
• ton, toff 15 S
• UL recognized (File #E90700)
• VDE recognized (File #E94766)
Ordering option '300' (e.g. H11F1.300)
H11F3 Typical Application
As a variable resistor
• Isolated variable attenuator
• Automatic gain control
• Active filter fine tuning/band switching
As an analog switch
• Isolated sample and hold circuit
• Multiplexed, optically isolated A/D conversion
H11F3
PDF/DataSheet Download
- Datasheet: H11F3
- File Size: 412975 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
- ·H1102
- 10/100Base-T Single Port Surface Mount Magnetics with Various Turns Ratios (9/02)
- 107396 KB
- ·H1106I
- INTERSIL [Intersil Corporation]
- 315MHz, Low Power, Video Operational Amplifier with Compensation Pin
- 630913 KB
- ·H1114I
- INTERSIL [Intersil Corporation]
- 850MHz Video Cable Driving Buffer
- 147323 KB
- ·H1117
- ETC [ETC]
- 10/100 BASE-T SINGLE PORT TRANSFORMER MODULES
- 194306 KB
- ·H1117-3.3E
- HSMC [Hi-Sincerity Mocroelectronics]
- 1A LOW DROPOUT POSITIVE VOLTAGE REGULATOR
- 45989 KB
- ·H1117-3.3J
- HSMC [Hi-Sincerity Mocroelectronics]
- 1A LOW DROPOUT POSITIVE VOLTAGE REGULATOR
- 60952 KB
- ·H1117E
- HSMC [Hi-Sincerity Mocroelectronics]
- 1A LOW DROPOUT POSITIVE VOLTAGE REGULATOR
- 45989 KB
- ·H1117EAdj
- HSMC [Hi-Sincerity Mocroelectronics]
- 1A LOW DROPOUT POSITIVE VOLTAGE REGULATOR
- 45989 KB
H11F3 Relative Products
H11F2M
The H11FXM series consists of a Gallium-Aluminum-Arsenide IRED emitting diode coupled to a symmetrical bilateral silicon photo-detector. The H11FXM seriesdetector is electrically isolated from the input and performs like an ideal isolated FET designed for di...
H11F2
The H11F series consists of a Gallium-Aluminum-Arsenide IRED emitting diode coupled to a symmetrical bilateral silicon photodetector.TheH11F series detector is electrically isolated from the input and performs like an ideal isolated FET designed for distorti...
H11F1VM
OPTOCOUPLER PHOTO FET 6DIP
H11F1TVM
OPTOCOUPLER PHOTO FET 6DIP

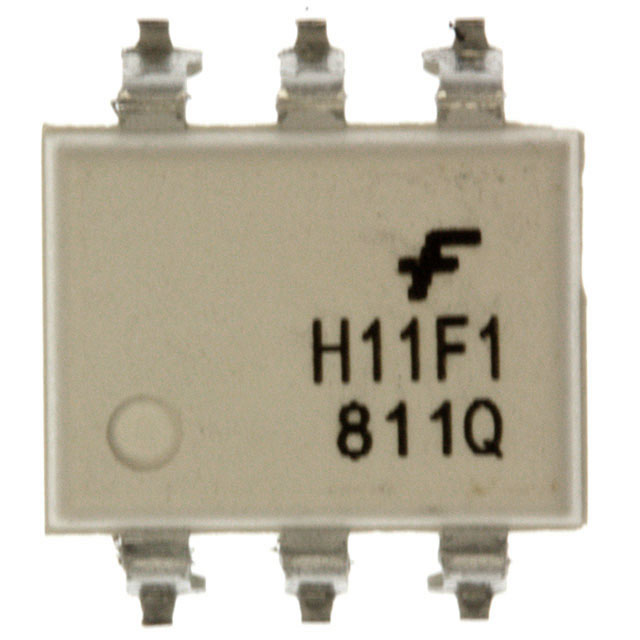

H11F1SR2M
OPTOCOUPLER PHOTO FET 6SMD

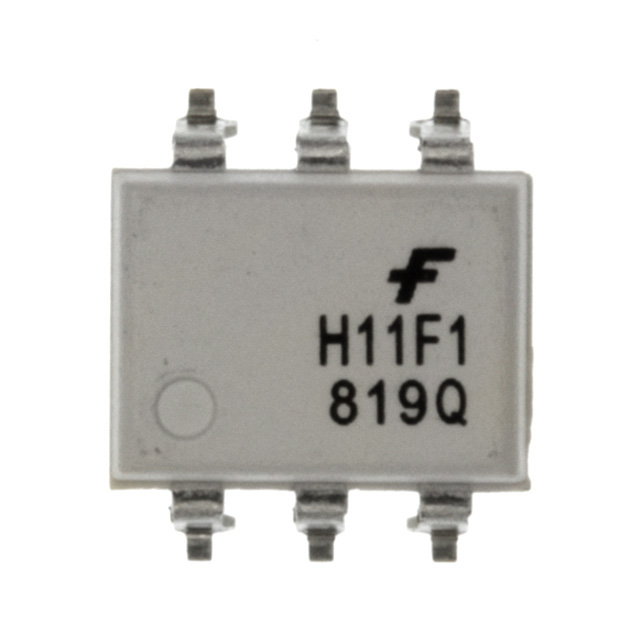

H11F1SM
