Product Details

Description



Features:

` 32kHz quartz oscillator
` Integrated capacitors, mask selectable
` Single battery operation
` 0.7 A typical current consumption
` Low resistance outputs for bipolar stepping motor
` Mask options for pad designation, motor period and pulse width, alarm frequency, modulation and duty cycle
` Alarm output function compatible with either NPN or PNP-driver transistors
` Alarm input function
` 1024Hz output on ALIN pad for oscillator frequency verification
` Fast test function
` ESD protected terminals




Application

· Analog clocks

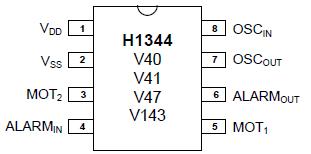

Pinout






Specifications

Parameter
Symbol
Min.
Max.
Units
Supply voltage range
Input voltage
Storage temperature
VDD-VSS
VIN
TSTOR
-0.3
VSS
-55
+5
VDD
+125
V
V
Stresses beyond these listed maximum ratings may cause permanent damage to the device. Exposure to conditions beyond specified operating conditions may affect device reliability or cause malfunction




Description

The H1344 is a low power 32Khz analog clock integrated circuit designed in HCMOS technology to drive a bipolar stepping motor. A set of capacitors is provided on H1344 chip to be connected, in any combination, to the two oscillator terminals, with a maximum total capacitance of 48pF. Both the motor pulse period and the motor pulse width are maskprogrammable.See page 6 for already available options
