HA-5033

Features: • Differential Phase Error . . . . . . . . . . . . . . . 0.02 Degrees• Differential Gain Error. . . . . . . . . . . . . . . . . . . . . . . 0.03%• High Slew Rate. . . . . . . . . . . . . . . . . . . . . . . . . 1100V/s• Wide Bandwidth (Small Signal) . . . . . . . ...

product image

HA-5033 Picture
See larger image
SeekIC No. : 004358355 Detail

HA-5033: Features: • Differential Phase Error . . . . . . . . . . . . . . . 0.02 Degrees• Differential Gain Error. . . . . . . . . . . . . . . . . . . . . . . 0.03%• High Slew Rate. . . . ....

HA-5033 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HA-5033
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Differential Phase Error . . . . . . . . . . . . . . . 0.02 Degrees
• Differential Gain Error. . . . . . . . . . . . . . . . . . . . . . . 0.03%
• High Slew Rate. . . . . . . . . . . . . . . . . . . . . . . . . 1100V/s
• Wide Bandwidth (Small Signal) . . . . . . . . . . . . . . 250MHz
• Wide Power Bandwidth . . . . . . . . . . . . . . DC to 17.5MHz
• Fast Rise Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3ns
• High Output Drive. . . . . . . . . . . . . ±10V With 100 Load
• Wide Power Supply Range. . . . . . . . . . .. . . ±5V to ±16V
• Replace Costly Hybrids




Application

• Video Buffer
• High Frequency Buffer
• Isolation Buffer
• High Speed Line Driver
• Impedance Matching
• Current Boosters
• High Speed A/D Input Buffers
• Related Literature
- AN548, Designer's Guide for HA-5033




Pinout

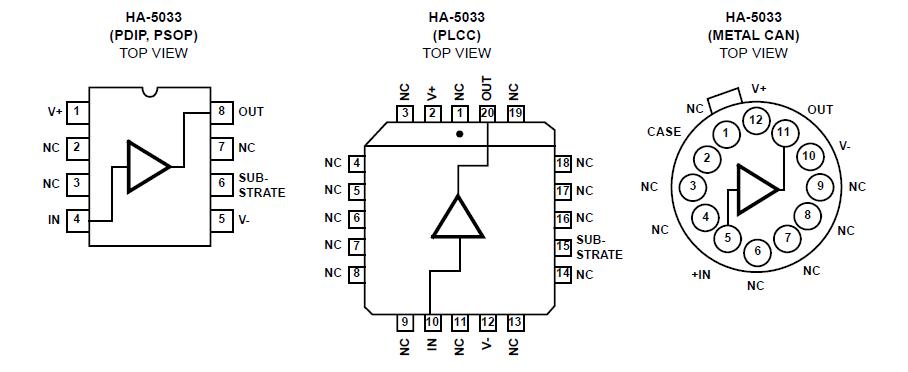

Connection Diagram




Specifications

Voltage Between V+ and V- Pins . . . . . . . . . . . . . . . . . . . . . . . . 40V
DC Input Voltage . . . . . . . . . . . . . . . . . . . . . . .. . . . . V+ to VOutput
Current (Peak) (50ms On/1 Second Off) . . . . . .. . . .. . . . . ±200mA
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7) . .. . . . 2000V




Description

The HA-5033 is a unity gain monolithic IC designed for any application requiring a fast, wideband buffer. Featuring a bandwidth of 250MHz and outstanding differential phase/ gain characteristics, this high performance voltage follower is an excellent choice for video circuit design. Other features, which include a minimum slew rate of 1000V/s and high output drive capability, make the HA-5033 applicable for line driver and high speed data conversion circuits.

The high performance of this product is a result of the Intersil Dielectric Isolation process. A major feature of this process is that it produces both PNP and NPN high frequency transistors which makes wide bandwidth designs, such as the HA-5033, practical. Alternative process methods typically produce a lower AC performance.
