Features: • This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• Low Input Noise Voltage Density at 1kHz. .. 6nVHz(Max) 4.3nVHz (Typ)
• High Slew Rate. . . . . . . . . . . . . . . . . . . . . .. .. ... 12V/ms (Min) 20V/ms (Typ)
• Wide Gain Bandwidth Product (AVCL 10). .. .. .. . .. .. .. .. .. .. . 40MHz (Typ)
• High Open Loop Gain (Full Temp) . . . .. .. .. .. . 100kV/V (Min) 250kV/V (Typ)
• High CMRR, PSRR (Full Temp). . . . .. .. .. .. .. . . . . . . . 86dB (Min) 100dB (Typ)
• Low Offset Voltage Drift . . . . . . . . . . . .. .. .. .. .. .. .. .. .. . .. . . . 3mV/ (Typ)
• No Crossover Distortion
• Standard Quad PinoutApplication• High Quality Audio Preamplifiers
• High Q Active Filters
• Low Noise Function Generators
• Low Distortion Oscillators

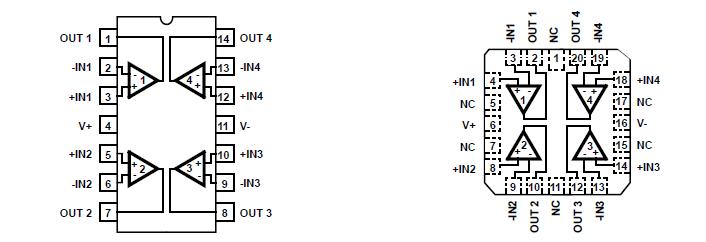

• Low Noise ComparatorsPinout
SpecificationsVoltage between V+ and V- Terminals . . . . . . . . . . . . . . . . . . 40V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Voltage at Either Input Terminal . . . . . . . . . . . . . . . . V+ to VPeak
Output Current. . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . Indefinite
(One Amplifier Shorted to Ground)
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . . . . +175
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2000V
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . +300
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
DescriptionLow noise and high performance are key words describing the quad, uncompensated HA-5114/883. This general purpose amplifier offers an array of dynamic specifications including 12V/ms slew rate (min), and 40MHz gain-bandwidth- product for AVCL 10. Complementing these outstanding parameters is a very low noise specification of 6nV/Hz at 1kHz (max).
Fabricated using the Intersil standard high frequency D.I. process, these operational amplifiers also offer excellent input specifications such as 2.5mV (max) offset voltage and 75nA (max) offset current. Complementing these specifications are 100dB (min) open loop gain and 55dB channel separation (min). Economically, HA-5114/883 also consumes a very modest amount of power (225mW/ package), while also saving board space and cost.
This impressive combination of features make this HA-5114/883 amplifier ideally suited for designs ranging from audio amplifiers and active filters to the most demanding signal conditioning and instrumentation circuits.
HA-5114_883 Data Sheet
