Features: • This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• Gain Bandwidth Product. . . . . . . . . . . . . . . . . . . . . . . . . .100MHz (Min)
• Unity Gain Bandwidth . . . . . . . . . . . . . . . . .. .30MHz (Min) 40MHz (Typ)
• High Slew Rate . . . . . . . . . . . . . . . . . . . . . . .25V/s (Min) 37V/s (Typ)
• Low Offset Voltage . . . . . . . . . . . . . . . .. . .0.75mV (Max) 0.30mV (Typ)
• High Open Loop Gain . . . . . . . . . . . . .. . . . . . 106dB (Min) 128dB (Typ)
• Low Voltage Noise (at 1kHz) . . .. . .5.8nV/Hz (Max) 3.6nV/Hz (Typ)
• Low Current Noise (at 1kHz) . . . . . 2.0pA/Hz (Max) 1.4pA/Hz (Typ)
• High Output Current . . . . .. . . . . . . . . . . . . ±30mA (Min) ±56mA (Typ)
• Low Supply Current. . . . . .. . . . . . . . . . . . . .. . . 10mA (Max) 8mA (Typ)Application• Precision Test Systems
• Active Filtering
• Small Signal Video
• Accurate Signal Processing

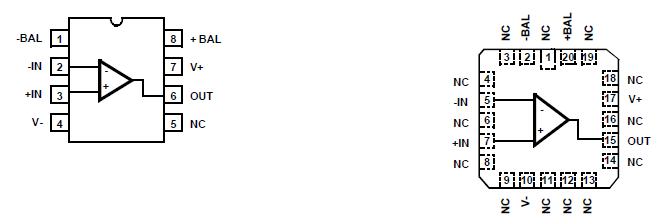

• RF Signal ConditioningPinout
SpecificationsVoltage Between V+ and V- Terminals . . . . . . . . . . . . .. . . . . . 36V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Voltage at Either Input Terminal . . . . . . . . . . . . . . . . V+ to VPeak
Output Current (Pulsed at 1ms, 10% Duty Cycle). . . . . . . . 100mA
Continuous Output Current. . . . . . . . . . . . Short Circuit Protected
Junction Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . +175
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . <2000V
Lead Temperature (Soldering 10s). . . . . . . . . . . . . . . . . . . . +300
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
DescriptionThe HA-5221/883 is a high performance, dielectrically isolated, monolithic op amp, featuring precision DC characteristics while providing excellent AC characteristics. Designed for audio, video, and other demanding applications, noise (3.6nV/Hz at 1kHz typ), total harmonic distortion (<0.005% typ), and DC errors are kept to a minimum.
The precision performance of HA-5221/883 is shown by low offset voltage (0.3mV typ), low bias currents (40nA typ), low offset currents (15nA typ), and high open loop gain (128dB typ). The combination of these excellent DC characteristics with fast settling time (0.4s typ) make the HA-5221/883 ideally suited for precision signal conditioning.
The unique design of the HA-5221/883 gives this device outstanding AC characteristics, including high unity gain bandwidth (40MHz typ) and high slew rate (37V/s typ), not normally associated with precision op amps. Other key specifications include high CMRR (95dB typ) and high PSRR (100dB typ). The combination of these specifications will allow the HA-5221/883 to be used in RF signal conditioning as well as video amplifiers.
HA-5221_883 Data Sheet
