Product Details

Description



Features:

• This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• High Slew Rate . . . . . . . . . . . . . . . . . . . . . . 14V/s (Min)
• Wide Gain Bandwidth (AV 5) . . . . . ..  . . . 60MHz (Min)
• Low Noise (at 1kHz) . . . . . . . . . . . . .. . 4.5nV/Hz (Max)
• Low Offset Voltage. . . . . . . . . . . . . . . . . . . .100V (Max)
• Low Offset Drift With Temperature. . .. . . 1.8V/oC (Max)
• High CMRR . . . . . . . . . . . . . . . . . . . . . .. . . . . 100dB (Min)
• High Voltage Gain . . . . . . . . . . . . . . .. .   . . 700kV/V (Min)


Application

• High Speed Signal Conditioners
• Wide Bandwidth Instrumentation Amplifiers
• Low Level Transducer Amplifiers
• Fast, Low Level Voltage Comparators
• Highest Quality Audio Preamplifiers
• Pulse/RF Amplifiers


Pinout

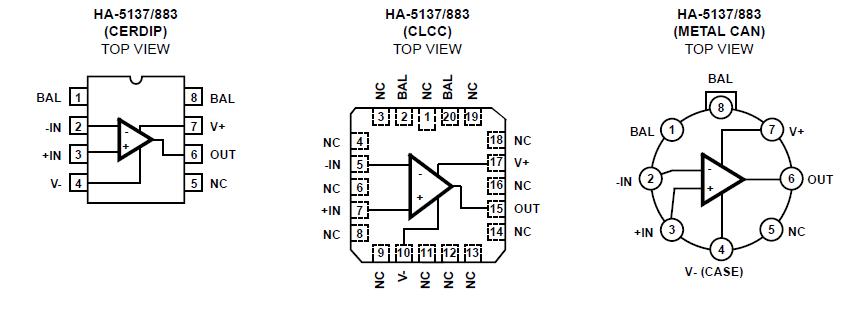

Connection Diagram


Specifications

Voltage Between V+ and V- Terminals . . . . . . . . . . . . . . . .. . . . . 44V
Differential Input Voltage (Note 1). . . . . . . . . . . . . . . . . . . .  . . . 0.7V
Voltage at Either Input Terminal . . . . . . . . . . ... . . . . . . V+ to VInput
Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .  . . . . . . . . . .25mA
Output Current . . . . . . . . . . . . . . . . . .. . . Full Short Circuit Protection
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . <2000V


Description

The HA-5137/883 monolithic operational amplifier features an excellent combination of precision DC and wideband high speed characteristics. Utilizing the Intersil DI technology and advanced processing techniques, this unique design unites low noise precision instrumentation performance with high speed, wideband capability.

This HA-5137/883  amplifier's impressive list of features include low VOS, wide gain-bandwidth, high open loop gain, and high CMRR. Additionally, this flexible device operates over a wide supply range while consuming only 120mW of power. Using the HA-5137/883 allows designers to minimize errors while maximizing speed and bandwidth in applications requiring gains greater than five.

This HA-5137/883  is ideally suited for low level transducer signal amplifier circuits. Other applications which can utilize the HA-5137/883's ualities include instrumentation amplifiers, pulse or RF amplifiers, audio preamplifiers, and signal conditioning circuits.
